DJI Transmission (Standard Combo)

DJI Transmission (Standard Combo)

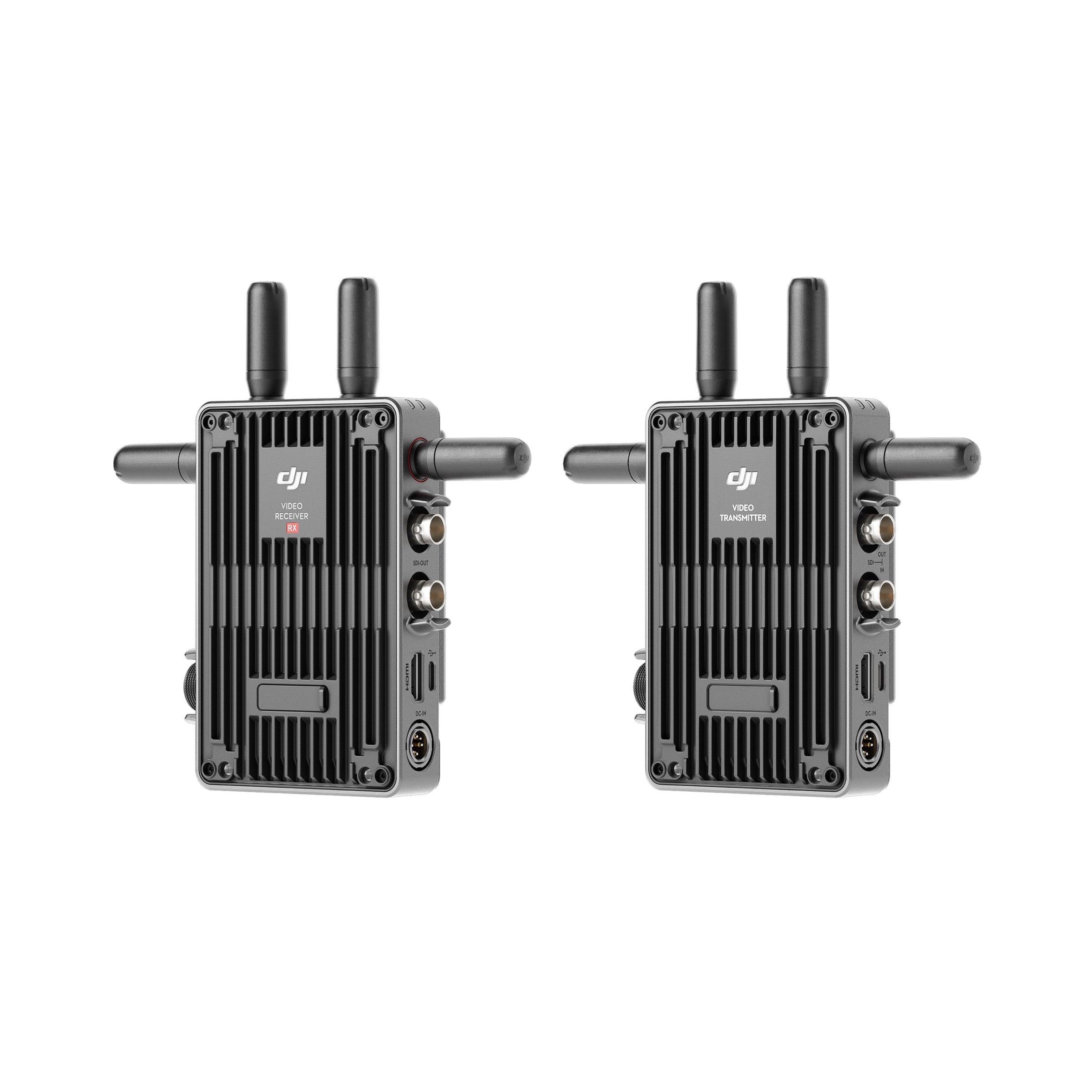

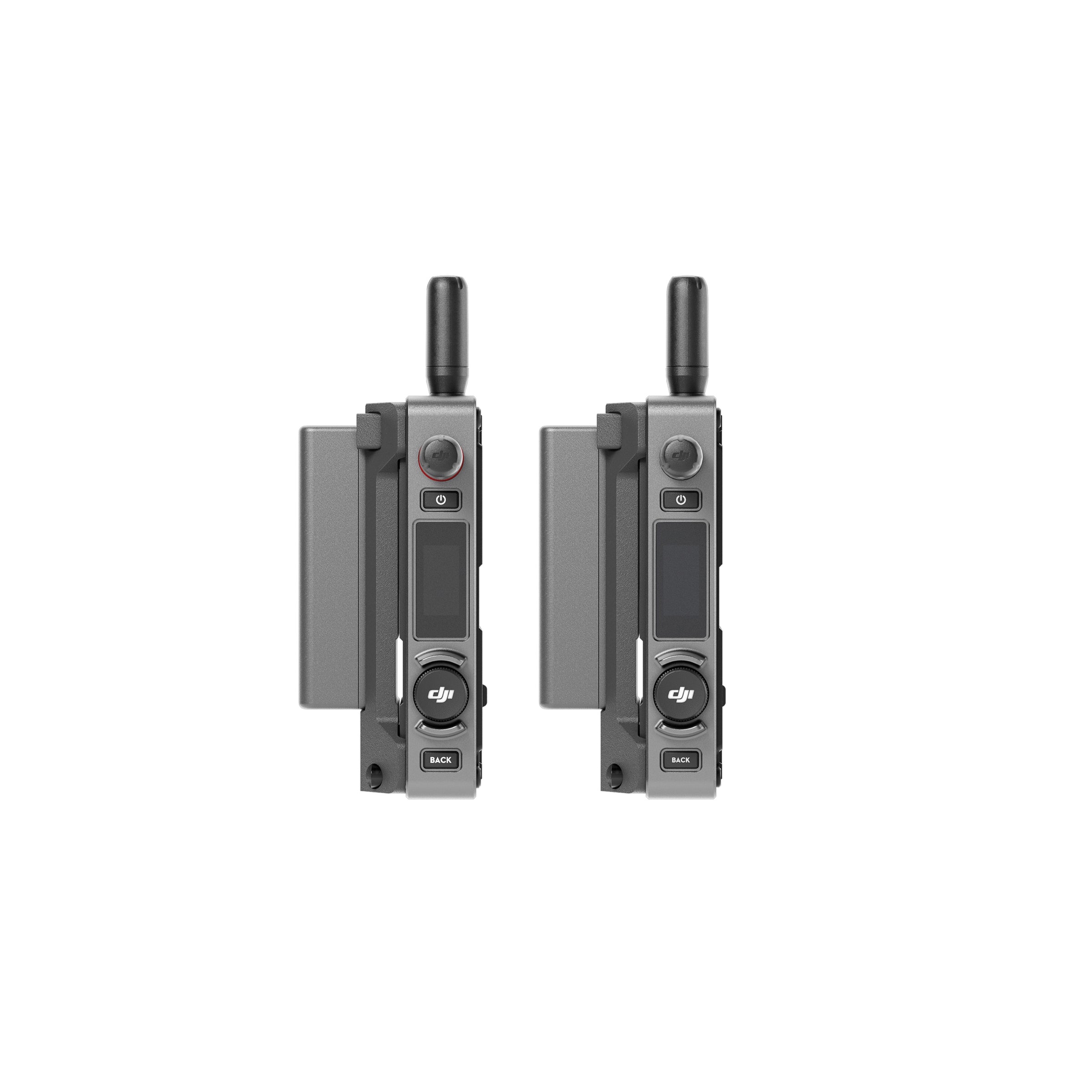

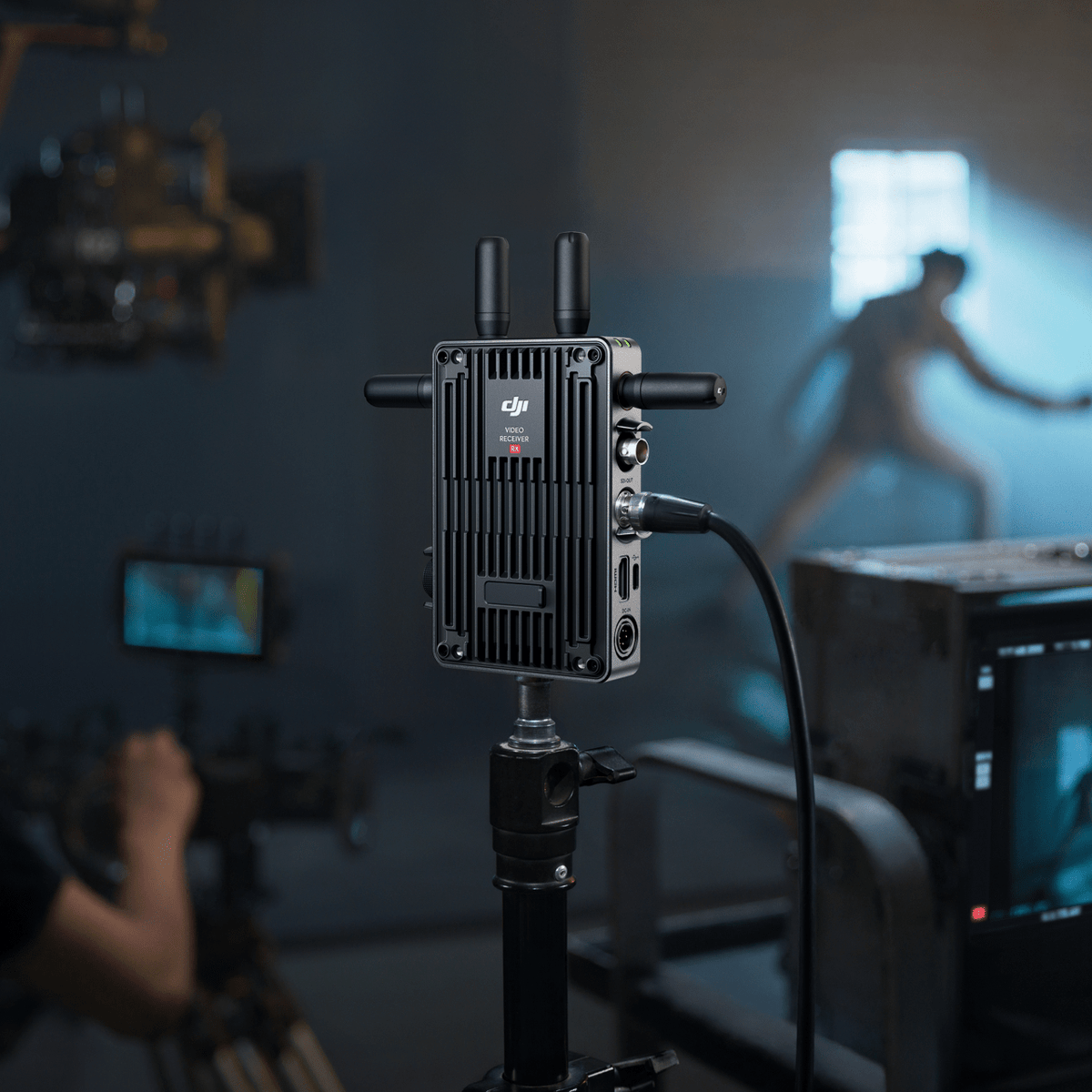

A high-performance wireless video transmission system designed to meet the needs of professional filmmakers and videographers, the DJI Transmission Standard Combo includes a video transmitter and video receiver, delivering extended-range and low-latency transmission suitable for use with production monitors.

Long-Distance HD Live Feed: Utilizing DJI’s O3 Pro video transmission technology, the system offers an impressive transmission range of up to 20,000 feet (approximately 6 kilometers) line-of-sight. It supports 1080p60 video transmission with a maximum bitrate of 50 Mb/s and live audio monitoring at 16-bit 48 kHz, providing crews on large sets with excellent remote visual and audio monitoring capabilities.

Ultra-Low Latency: The system achieves end-to-end ultra-low transmission latency, ensuring real-time monitoring and control, which is crucial for high-precision filming environments.

Seamless Auto Frequency Hopping: The O3 Pro technology incorporates 2.4 GHz and 5.8 GHz frequency bands and DFS frequency bands, offering up to 23 channel options. This feature allows the system to automatically scan and select the optimal channel, ensuring stable and reliable transmission even in complex signal environments.

Multiple Transmission Modes: In Control mode, the system delivers optimal transmission performance, allowing monitoring from two receivers simultaneously, with remote control of the Ronin 2 and RS 3 Pro gimbals and camera. Broadcast mode enables an unlimited number of receivers, making it ideal for large crews requiring multiple monitoring points.

Remote Gimbal/Focus Camera Control: When used with Ronin 4D Hand Grips or DJI Master Wheels, you can remotely control Ronin 2, RS 3 Pro, focus, and camera functions.

Integrated Wireless Receiver: The DJI High-Bright Remote Monitor integrates monitor and receiver with expansion features and supportive tools for precise control.

Independent Recording & Playback: The video footage can be recorded and stored on a microSD card, making it easy to edit samples.

Encrypted Transmission: The system supports AES 256-bit encryption, ensuring the security of your footage and preventing unauthorized access.

The DJI Transmission (Standard Combo) is designed for native integration with Ronin-series products and DJI Master Wheels, transforming the industry with a groundbreaking transmission experience that provides vision beyond boundaries.

Highlights:

•    20,000ft 1080p/60fps Transmission
•    Seamless auto-frequency hopping
•    End-to-end ultra-low latency
•    Integrated wireless receiver
•    Gimbal/focus/camera control
•    Independent recording and playback

SPECIFICATIONS:

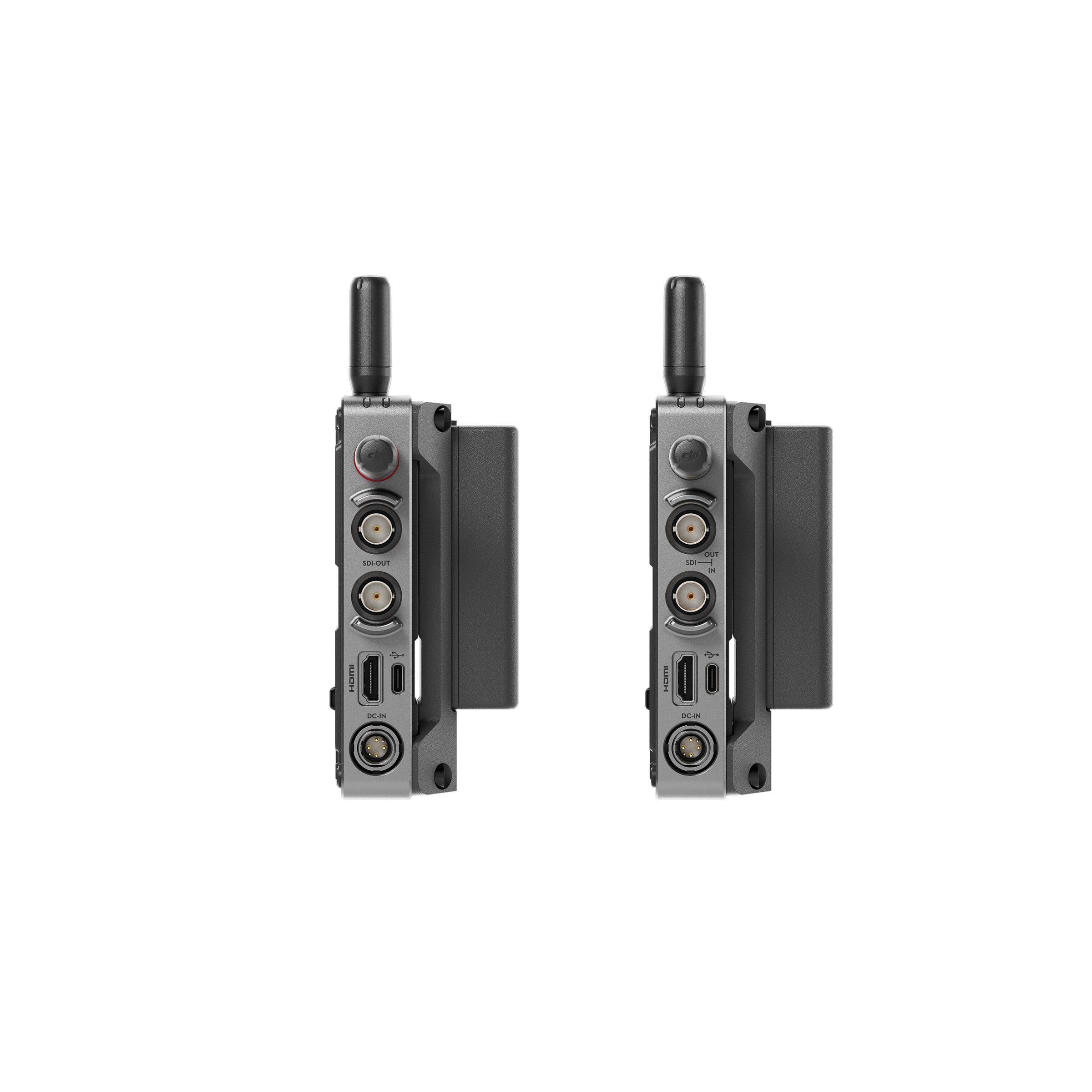

Video I/O
1x BNC (3G-SDI) Input
1x HDMI 1.4 Input
1x BNC (3G-SDI) Loop Output

Embedded Audio: HDMI/SDI
Latency: 68 ms

Video Format
HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Battery: 1x L-Series Mount on Included, Interchangeable Plate
Power Consumption: 11 W
Antenna I/O: 2x RP-SMA Female
Audio I/O: No
Power I/O: 1x USB-C Input; 1x Barrel Input
Encryption: Yes, 256-bit AES
Wireless Range: 3.7 Miles / 6 km (Line-of-Sight)
Number of Channels: 23
Channel Bandwidth: 40 MHz

Frequency Range
Non-DFS Frequencies
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
DFS Frequencies
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz

RF Power: < 33 dBm
Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth: No
Mobile App Compatible: No
Cellular Support: No
Format Support: Video Format
Audio Format: 16-bit 48 kHz PCM Audio
Wireless Video Compression: Compressed
Timecode Support: No
Input Power: 6 to 18 VDC
Power Consumption: 11 W
Tripod/Accessory Mounting: 1x Cold Shoe; 1x 3/8″-16 Female; 2x 1/4″-20 Female
Environmental Resistance: No
Operating Conditions: 22 to 77°F / -10 to 45°C
Dimensions: 5 x 3.4 x 1″ / 127 x 87 x 26 mm

Weight: 12.35 oz / 350.00 g

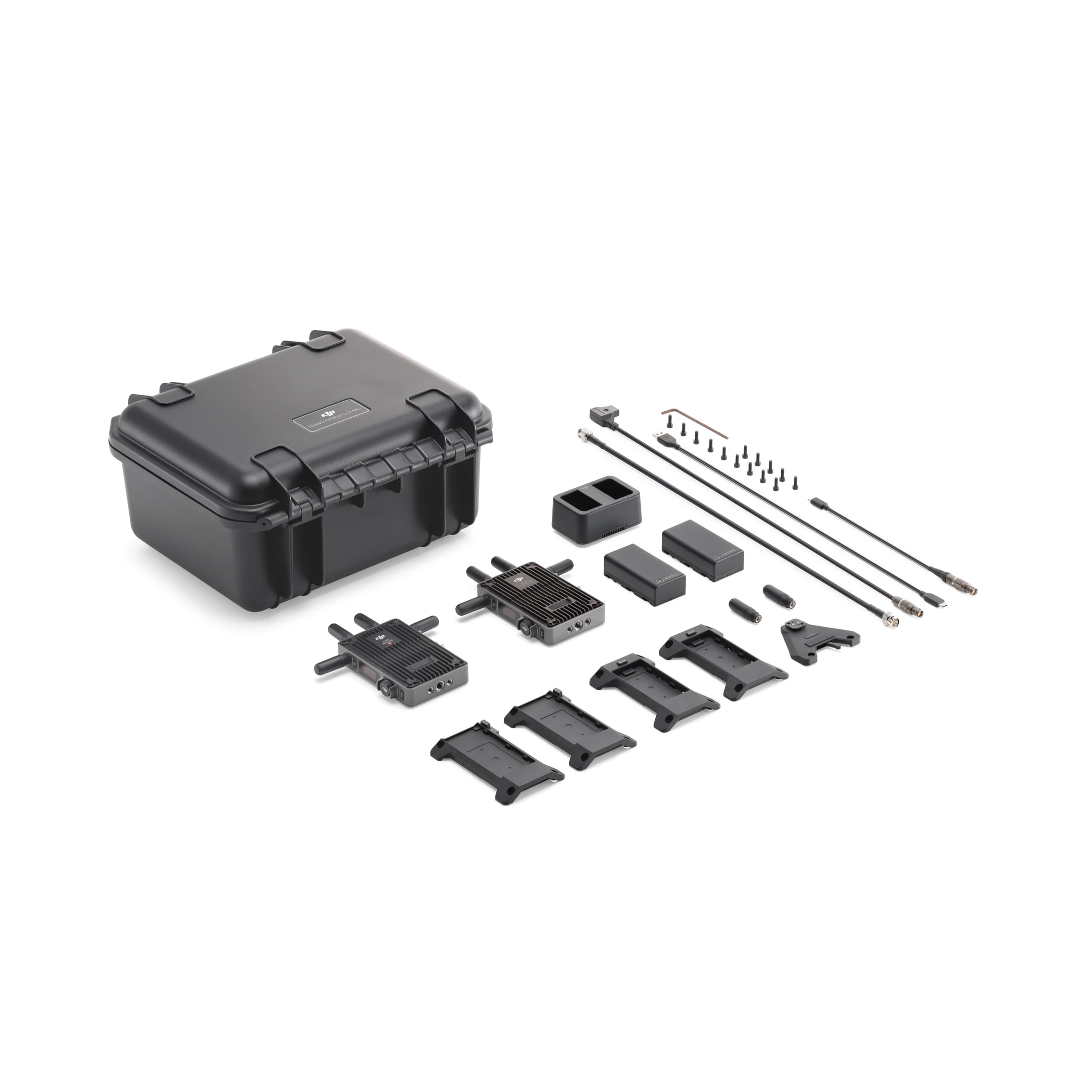

WHAT’S IN THE BOX:

1 x DJI Video Transmitter

1 x DJI Video Receiver

2 x WB37 Battery Adapter

1 x RS Gimbal Mounting Plate

2 x WB37 Intelligent Battery

1 x WB37 Battery Charging (USB-C) Hub

1 x DJI Transmission USB-C Power Cable

1 x DC to P-TAP Power Cable

1 x SDI Power Cable

1 x USB-C Cable

1 x Protector Case

2 x Ronin Video Transmission Antenna
