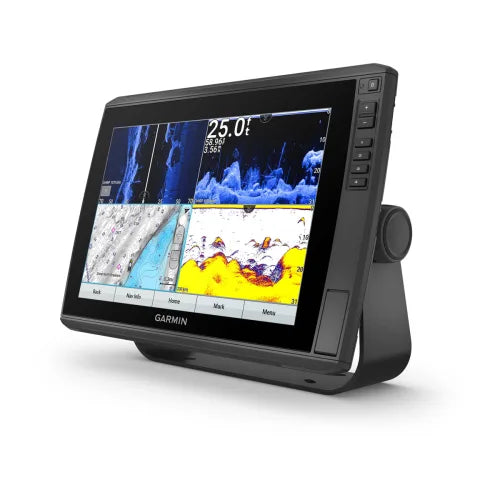

Garmin ECHOMAP Ultra 126sv Boat Navigator, Sonnar, Transducer
The sunlight-readable 12” touchscreen combo features preloaded coastal and inland Garmin Navionics+™ mapping, plus the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.
- The keyed-assist 12” touchscreen puts fishfinding know-how at your fingertips.
- See crisp images of structure and fish in stunning detail.

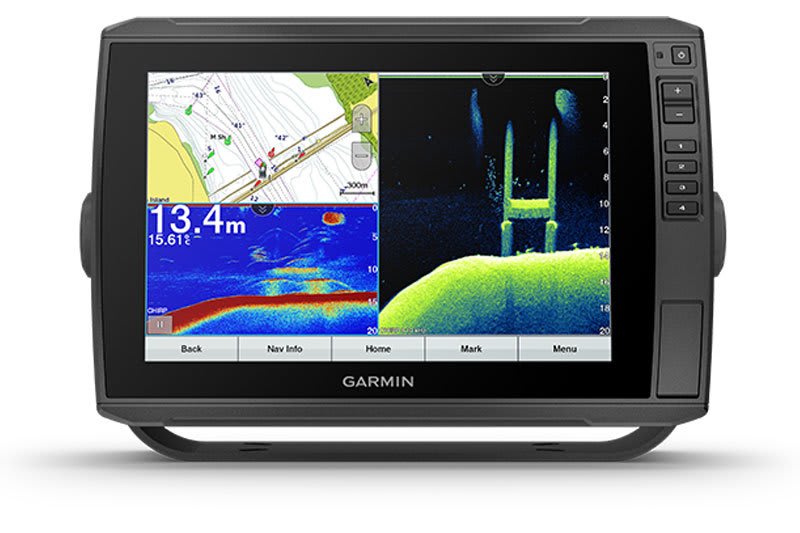

- Navigate confidently with built-in Garmin Navionics+™ inland and coastal mapping.
- Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.
- Connect your boat to share data, sonar and charts with your other compatible devices.
- Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.

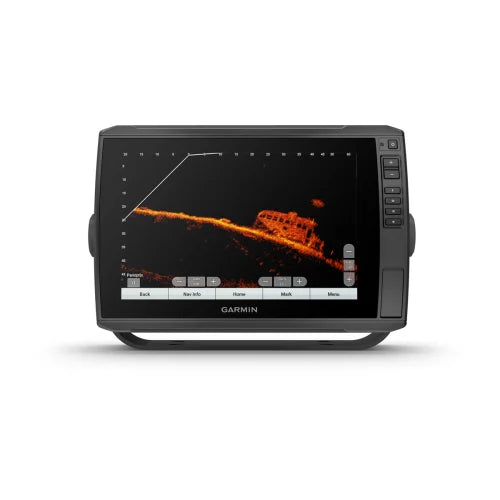

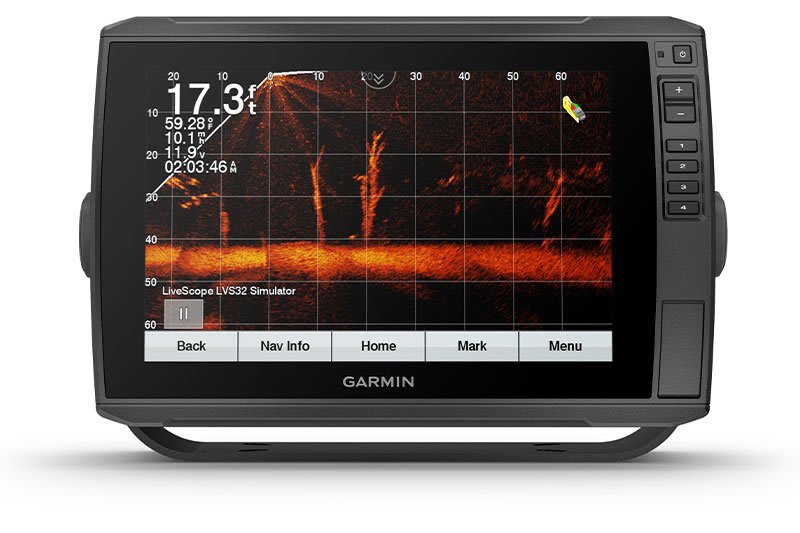

LIVESCOPE™ SONAR SUPPORT
ECHOMAP Ultra supports a variety of Garmin transducers (sold separately), including LiveScope all-seeing live sonar.

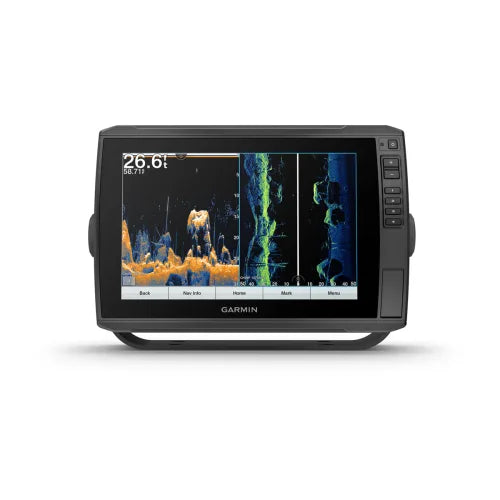

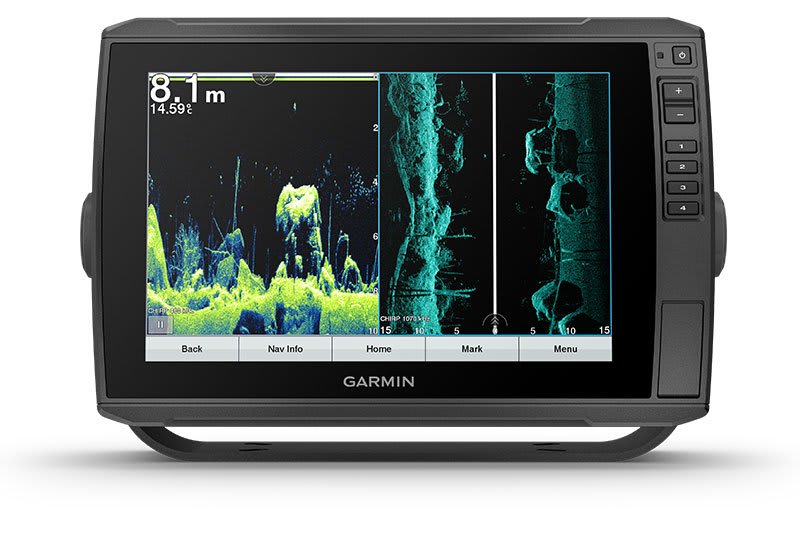

BUILT-IN UHD SONAR

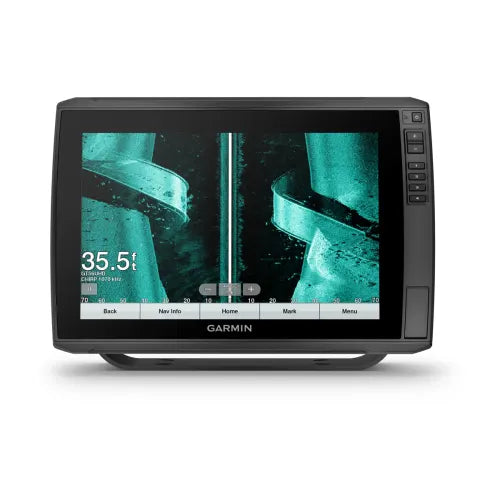

Built-in UHD sonar provides Garmin CHIRP traditional sonar plus Ultra High-Definition ClearVü™ and SideVü™ scanning sonars when paired with a compatible UHD transducer. Transducer bundled products include the GT56 transducers with three scanning sonar frequencies and 20% greater range for your UHD SideVü sonar.

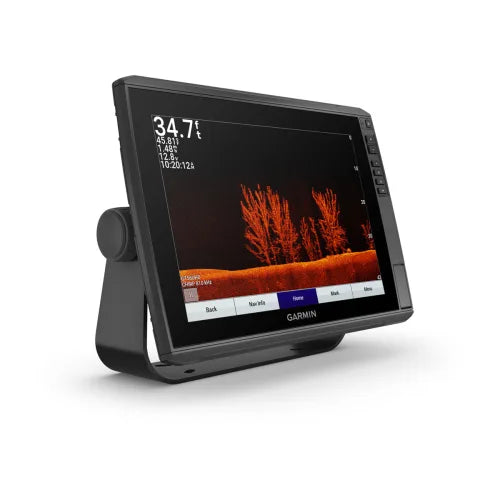

VIVID COLOR PALETTES
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

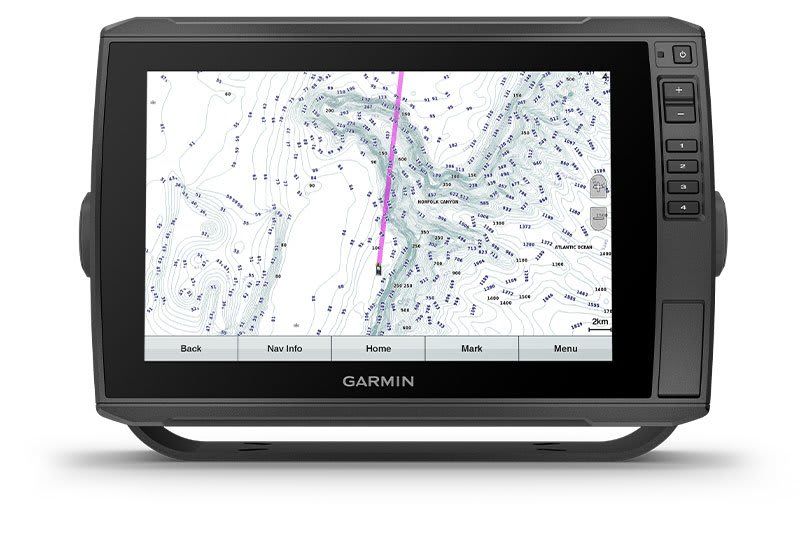

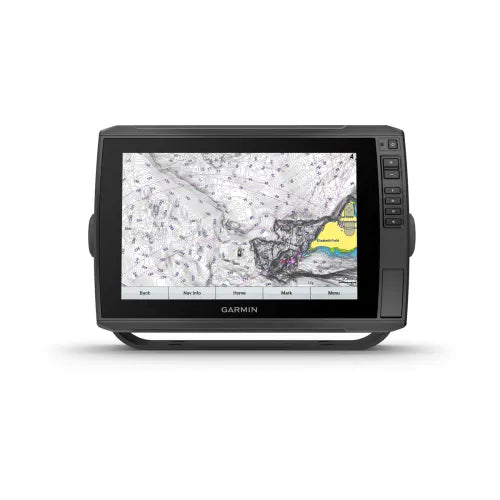

ADD CHARTS
Experience unparalleled coverage and detail with optional Garmin Navionics+ integrated mapping or optional Garmin Navionics Vision+™ premium mapping with high-resolution relief shading, satellite imagery, sonar imagery and more. They even come with a 1-year subscription for downloadable daily updates.

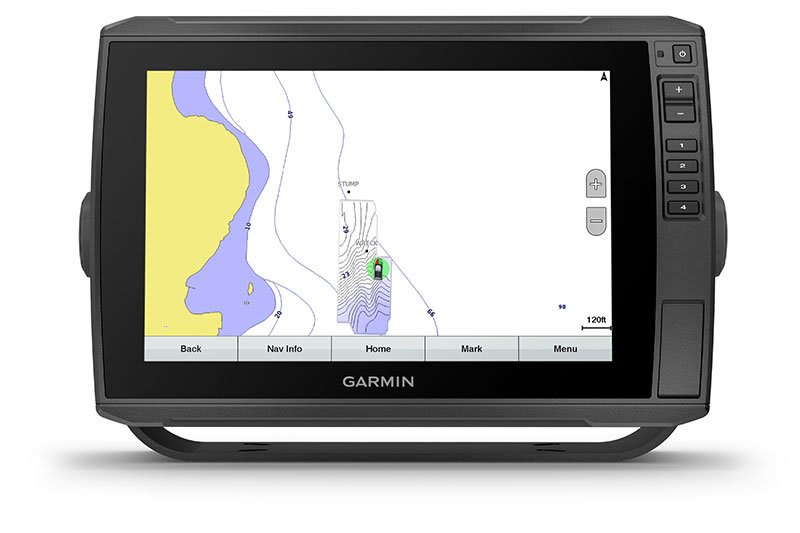

QUICKDRAW CONTOURS
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app2.
NETWORK CAPABLE
If you have multiple compatible ECHOMAP Ultra 10” or 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data and charts — among them.
NMEA 2000® NETWORK COMPATIBILITY

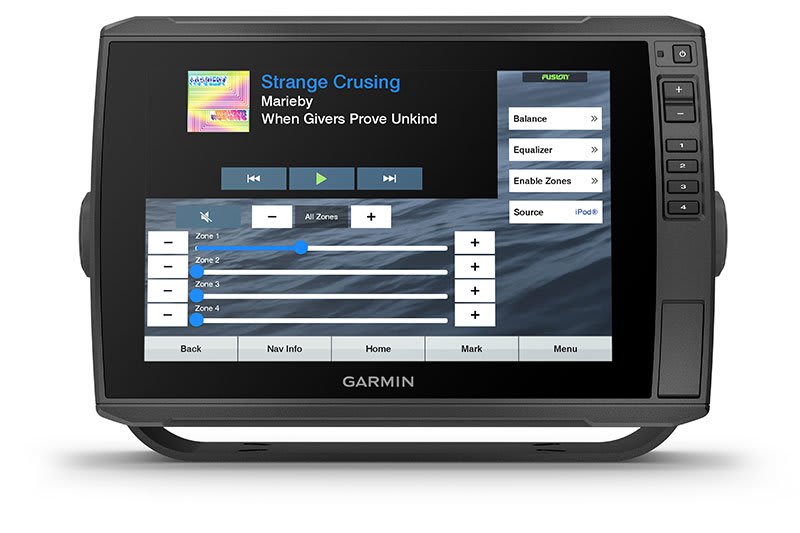

Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.

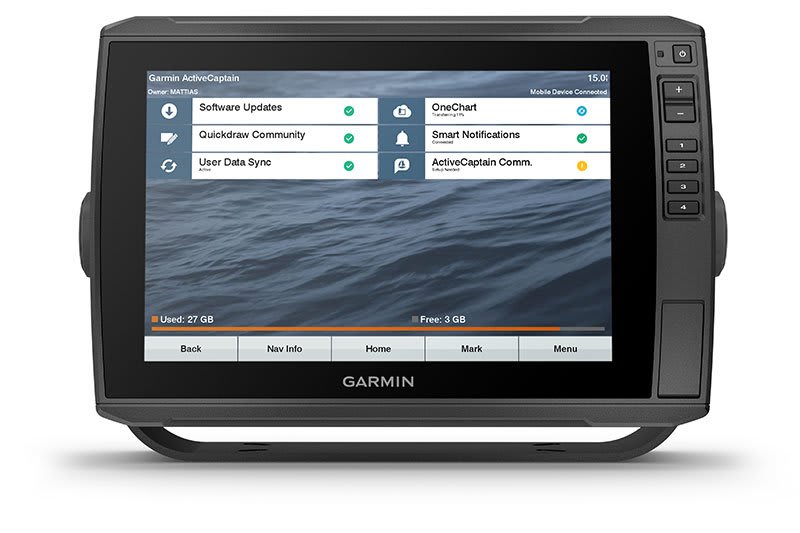

ACTIVECAPTAIN APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.

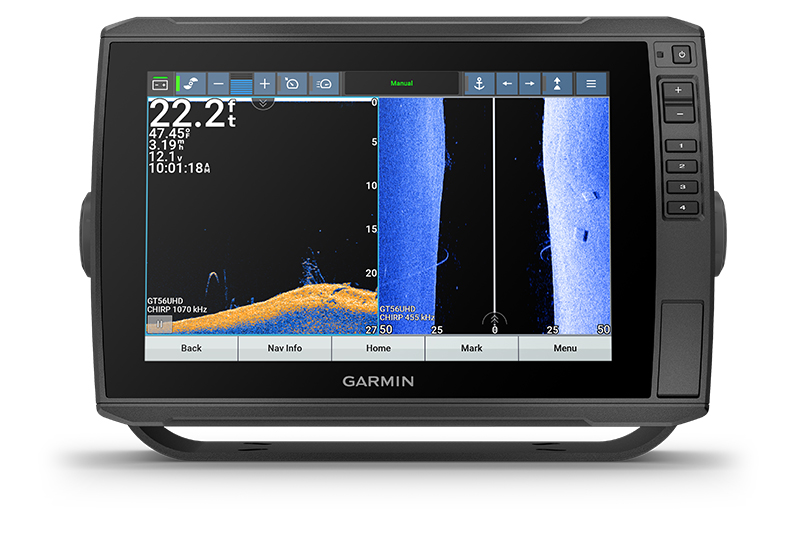

FORCE® TROLLING MOTOR COMPATIBILITY
Take control of the most powerful and efficient trolling motor available3, route it to waypoints, follow tracks and more from the screen of your chartplotter.

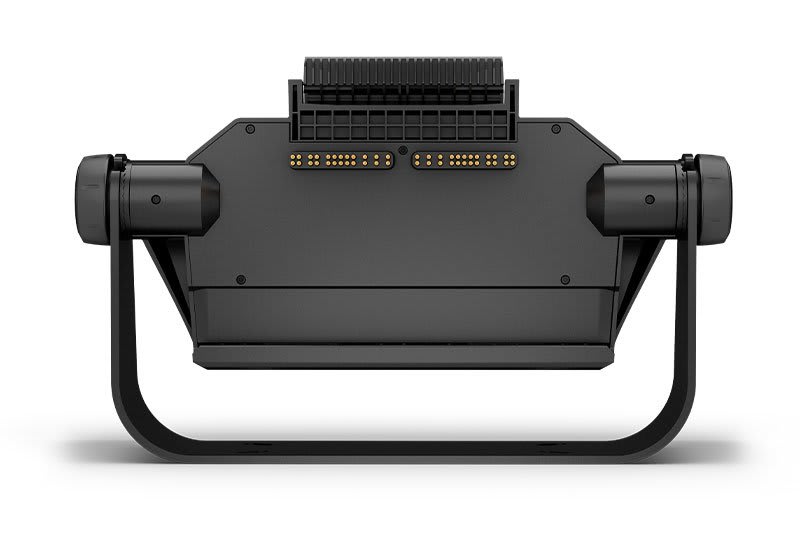

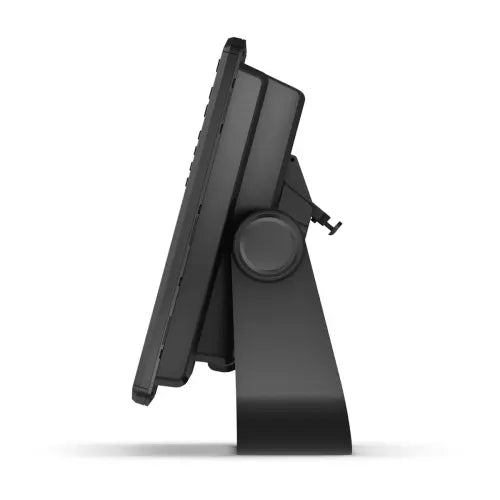

TAKE IT WITH YOU
Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
What’s in the box
- ECHOMAP Ultra with worldwide basemap
- GT56UHD-TM transducer (if option is selected
- Power/data cable
- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
Specifications
General | |
| DIMENSION | 13.4″ x 9.0″ x 3.9″ (34.1 x 22.9 x 9.8 cm) |
|---|---|
| TOUCHSCREEN | |
| INPUT | Touchscreen with Keyed Assist |
| DISPLAY SIZE | 10.3″ x 6.4″; 12.1″ diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA, IPS |
| WEIGHT | 5.5 lbs (2.5 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
Maps & Memory | |
| ACCEPTS DATA CARDS | 2 microSD cards |
|---|---|
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors | |
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | |
| NMEA 0183 COMPATIBLE | |
| GPS | |
| SUPPORTS WAAS | |
Built-in Maps | |
| TIDE TABLES | |
|---|---|
Optional Map Support | |
| GARMIN NAVIONICS+™ | |
|---|---|
| GARMIN NAVIONICS VISION+™ | |
| TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
Chartplotter Features | |
| AIS | |
|---|---|
| DSC | |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | |
| ACTIVECAPTAIN® COMPATIBLE | yes |
| SAILING FEATURES | |
Sonar Features & Specifications | |
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 600 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | |
| LIVESCOPE | |

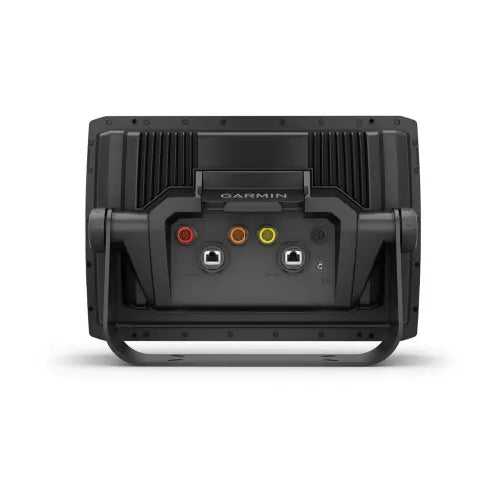

Connections | |
| NMEA 2000® PORTS | 1 |
|---|---|
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 2 (large connector) |
| 12-PIN TRANSDUCER PORTS | 1 LVS sonar; 1 scanning sonar |
Electrical Features | |
| POWER INPUT | 9 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 3.0 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.3 A |
| MAXIMUM POWER USAGE AT 10 VDC | 26.2W |
