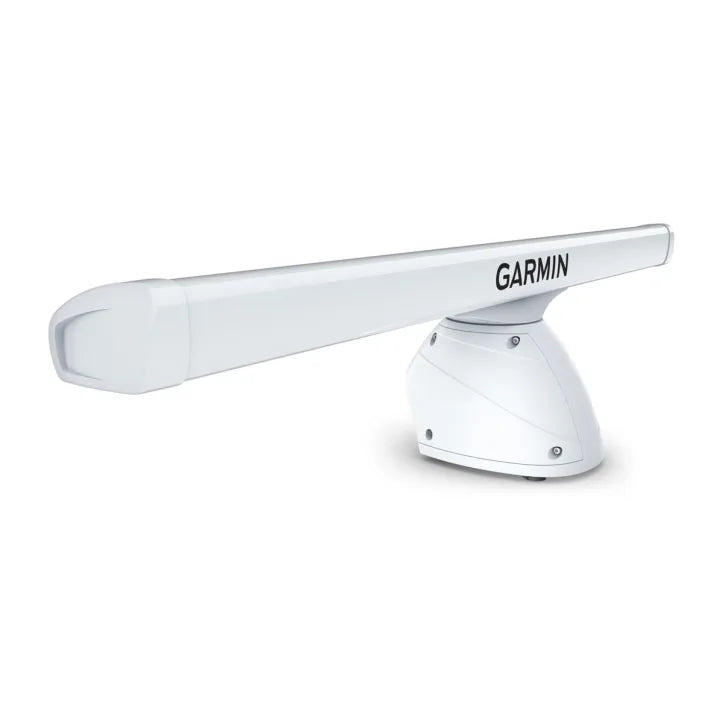

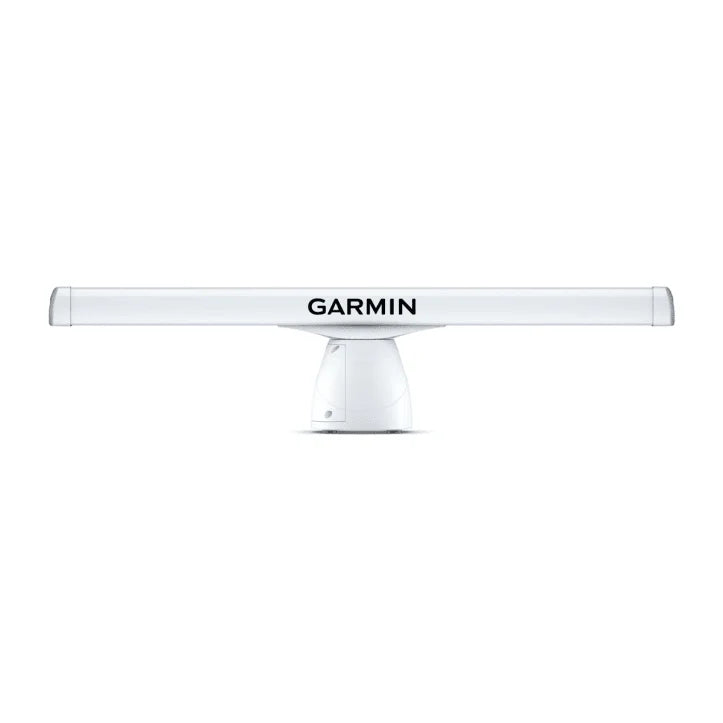

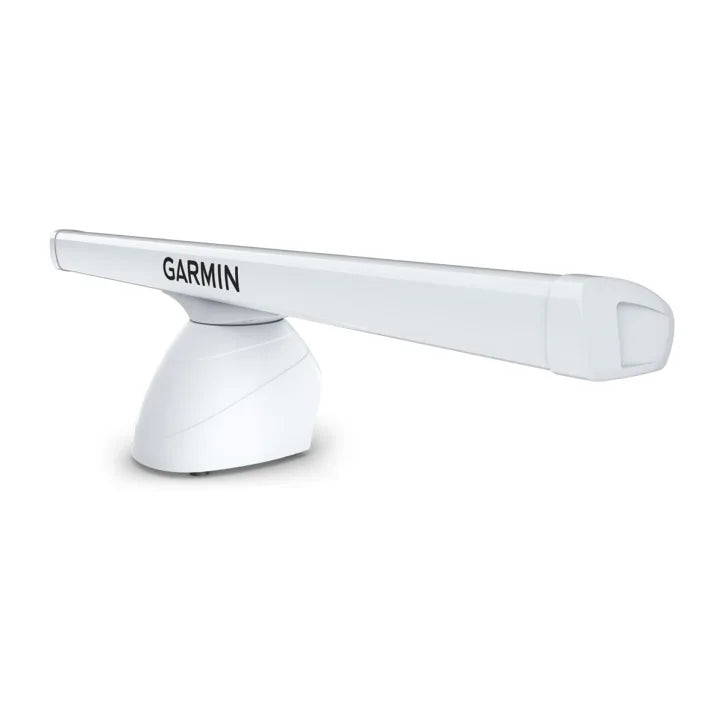

GMR 2534 xHD3 is a 4′ open array radar antenna and pedestal kit from Garmin with 25kW of magnetron power and a fusion of high-definition imaging with latest Garmin platform technology, that keeps a check on obstacles, traffic and weather changes and lets you conquer the vast expanse of waters like a pro.

SCAN AVERAGING TECHNOLOGY

GMR 2534 xHD3 boasts of the new scan averaging technology, a first for Garmin that effectively filters out sea clutter and other interferences to detect and display consistent targets in superior clarity and details.

HIGH PERFORMANCE ANTENNAS

Garmin’s 4′ open array antenna is 100-knot wind-rated with speeds of 24 and 48 RPM rapid redraw rates scanning a max range of 96 nautical miles on the 25kw version. (up to 72 nautical miles on 4 and 12 kw versions).

HIGH RESOLUTION DUAL RADAR SUPPORT

Detect every obstruction on each display unit with data from different sources, eliminate redundancy and view even the farthest objects in optimal clarity with Garmin’s narrow horizontal beamwidth and high antenna gain.

TRUE ECHO TRAILS

Garmin radar cleverly eliminates relative motion influence with a historical trail of boats to determine moving targets and potential collision threats.

Highlights:

• Angular target-size adjustment
• Split-screen dual-range display
• 100-knot commercial grade wind rating
• Quiet open-array drive motor
• Dynamic auto gain adjusts settings for harbors, near shore and off shore in open waters
• Dynamic sea filter adapts and filters sea clutter for calm, medium and rough conditions
• Create Guard Zone with breach trigger alarm for added safety
• Marpa target tracking
• Variable range markers and electronic bearing lines

Specifications:

Dimension: 52.2″ x 4.8″ x 6.7″

Pedestal: 20.5″ x 12.9″ x 12.4″

Weight: 4’ array and pedestal: 62.61lbs

Water rating: IPX6

Max Wind Load: 100kt

Antenna Length: 48″

Rotation speed (RPM): 24 and 48 rpm

Beam width: 1.8° horizontal, 23° vertical

Maximum range: 96 nm

Minimum range: 20 metres

Radar type: Open-Array

Electrical features

Power Input: 10 – 32 V DC

Power Consumption (standby): 18 W

Typical power consumption, transmitting (normal mode): 70 W

Transmit power: 25 kW

Radar Features

DUAL RANGE: Yes

Overlay: Yes

Dual radar support: Yes

Auto Bird Gain: Yes

Auto Gain: Dynamic

MARPA target tracking: Yes (requires heading sensor, sold separately)

Echo Trails: True

Programmable antenna parking: Yes

Target size: Yes

Scan averaging: Yes

What’s in the Box:

1 x GMR xHD3 25 kW open array radar with  4’ antenna

1 x Power cable (15 m/49.21 ft)

1 x Network cable (15 m/49.21 ft)

1 x Mounting hardware kit and template

1 x Installation instructions
