Overview
Summary
- High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
- Cooling capacity: 12,000 BTU/H with 20.8 SEER2 / 10.3 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 8.7 HSPF2 / 3.13 COP2 efficiency
- Voltage: 110~120V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $79.00
- Heating: $242.00
[[SERIES]]
What’s Included
- Indoor Unit
- Outdoor Unit

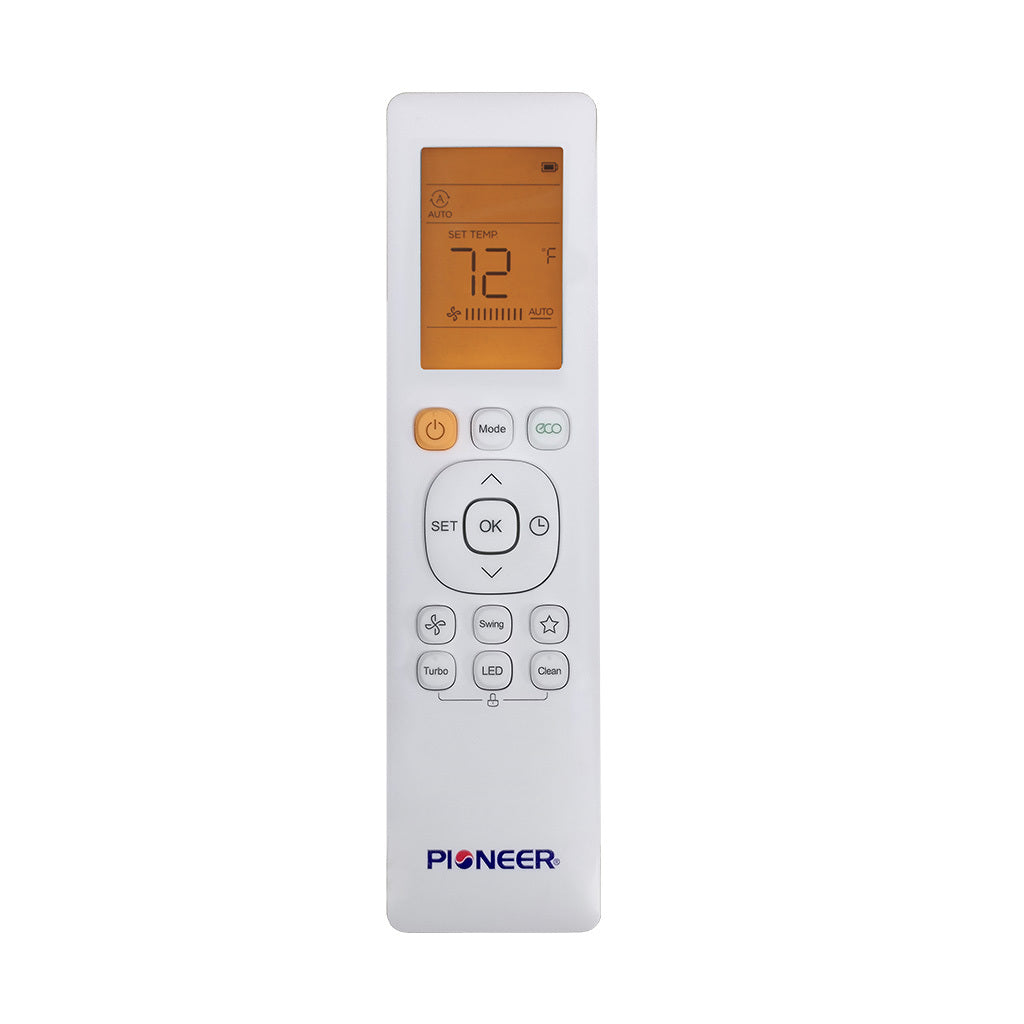

- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 4,300~12,600 BTU/h
- Cooling SEER2: 20.8 BTU/W.h
- Cooling EER2: 10.3 BTU/W.h
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 4,000~12,500 BTU/h
- Heating HSPF2 (Region IV/V): 8.7 / 6.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.13 / 1.91 W/W
- Refrigerant Type: R410A/30
- Suitable Area: 300~450 Sq.F
Indoor Unit Data
- Part Number: WS012AMFI20HLD
- Air Flow (Turbo/Hi/Med/Lo): 341 / 309 / 206 / 176 CFM
- Sound Level (Hi/Med/Lo): 41.5 / 30.5 / 26.0 dB(A)
- Net Dimensions (WDH): 31.57 x 7.44 x 11.69 Inches
- Carton Dimensions (WDH): 34.45 x 11.22 x 14.96 Inches
- Net / Gross Weight: 20 / 25 lbs

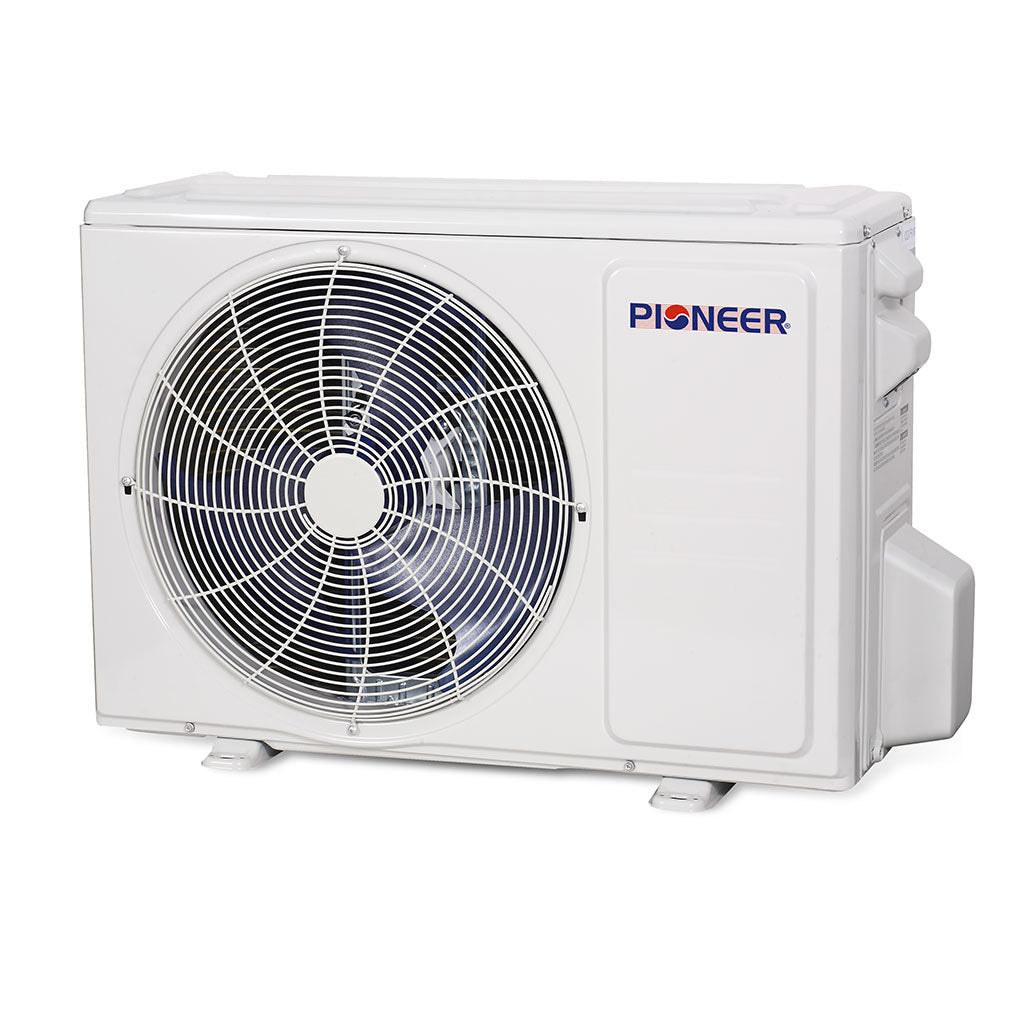

Outdoor Unit Data
- Model Number: YN012AMFI20RPD
- Sound Level: 55.5 dB(A)
- Net Dimensions (WDH): 30.1 x 11.93 x 21.85 Inches
- Carton Dimensions (WDH): 34.8 x 13.25 x 24 Inches
- Net / Gross Weight: 62.2 / 67.7 lbs
- Breaker Needed: 20A (single-pole)
