Overview
Summary
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 24,000 BTU/H with 21.5 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 25,000 BTU/H with 9.7 HSPF2 / 3.32 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Ceiling Compact Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $153.00
- Heating: $503.00
[[SERIES]]

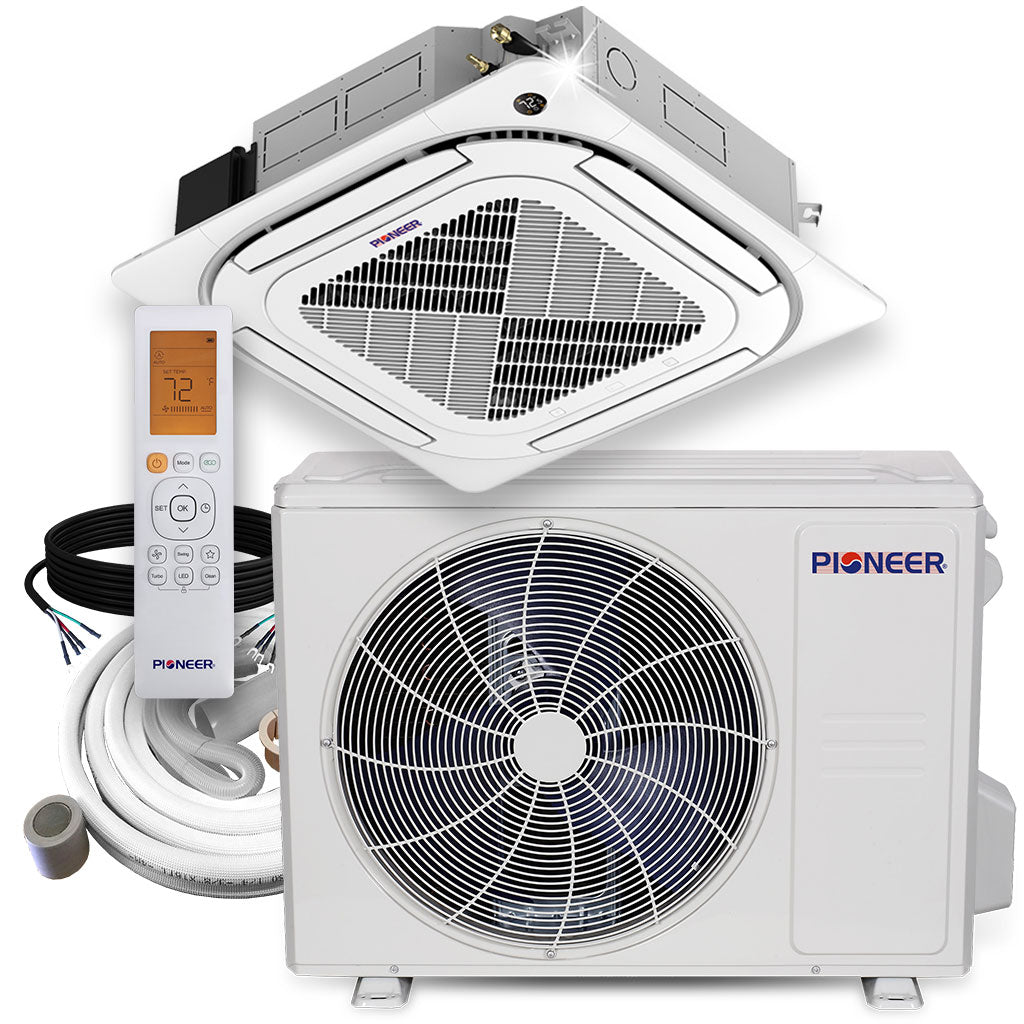

What’s Included
- Indoor Unit
- Outdoor Unit
- Panel

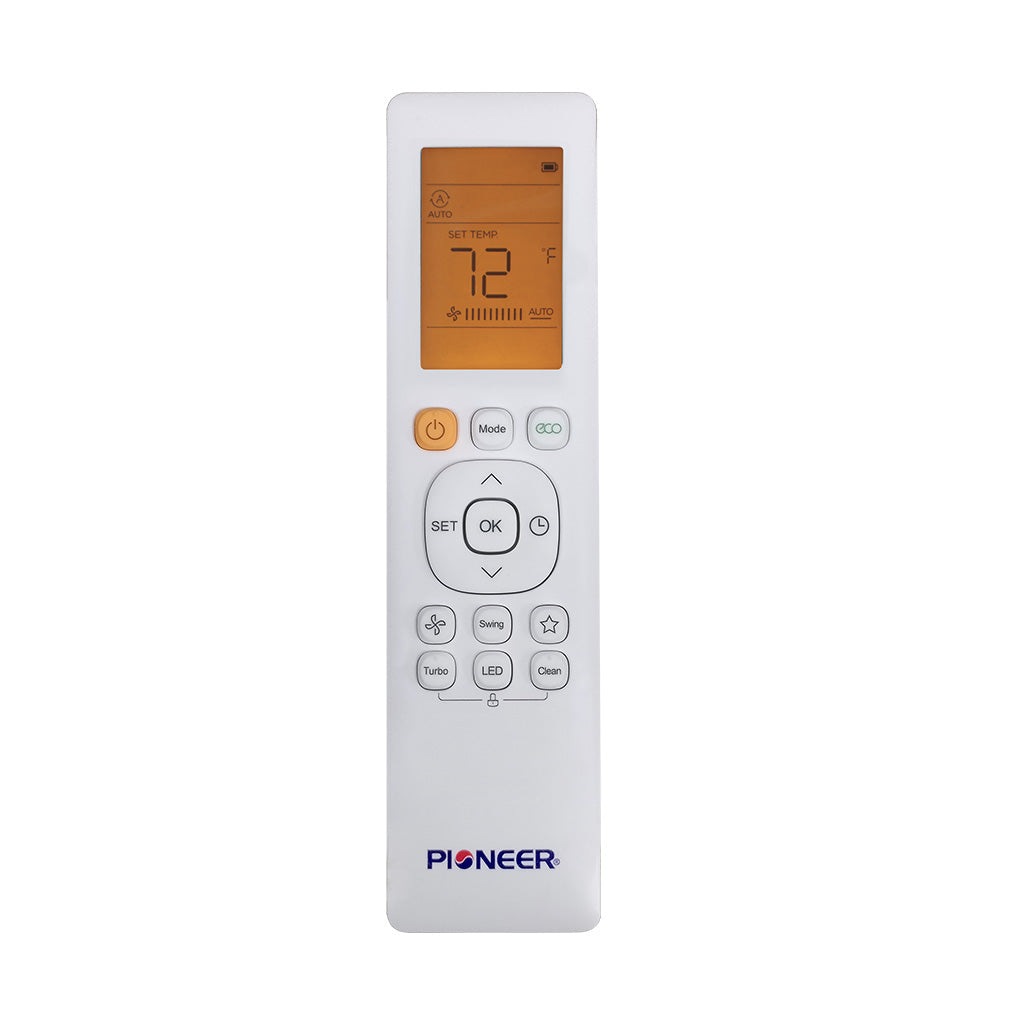

- Wireless Remote Control

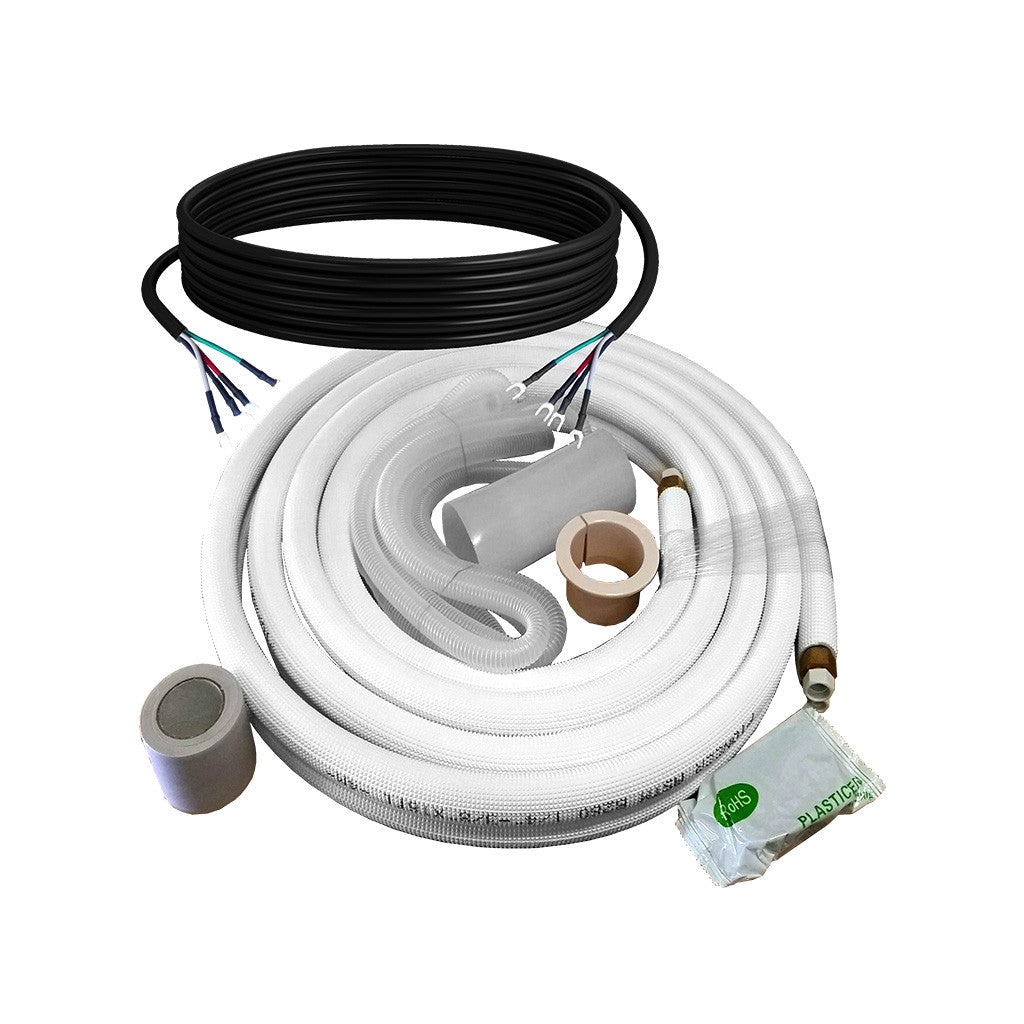

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 8,100~26,200 BTU/h
- Cooling SEER2: 21.5 BTU /W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 25,000 BTU/h
- Heating Capacity Range: 10,600~30,000 BTU/h
- Heating HSPF2: 9.7 BTU/W.h
- Heating C.O.P.2: 3.37 W/W
- Refrigerant Type: R410a
- Suitable Area: 600~950 Sq.F
Indoor Unit Data
- Model: CB024GMFILDFHE
- Air Flow (Hi/Med/Lo): 706 / 635 / 547 CFM
- Sound Level (Hi/Med/Lo): 49.0 / 46.0 / 43.0 dB(A)
- Net Dimensions (WDH): 32.6 x 32.6 x 8.2 Inches
- Carton Dimensions (WDH): 35.8 x 35.8 x 9.8 Inches
- Net / Gross Weight: 47.2 / 55.3 Lbs

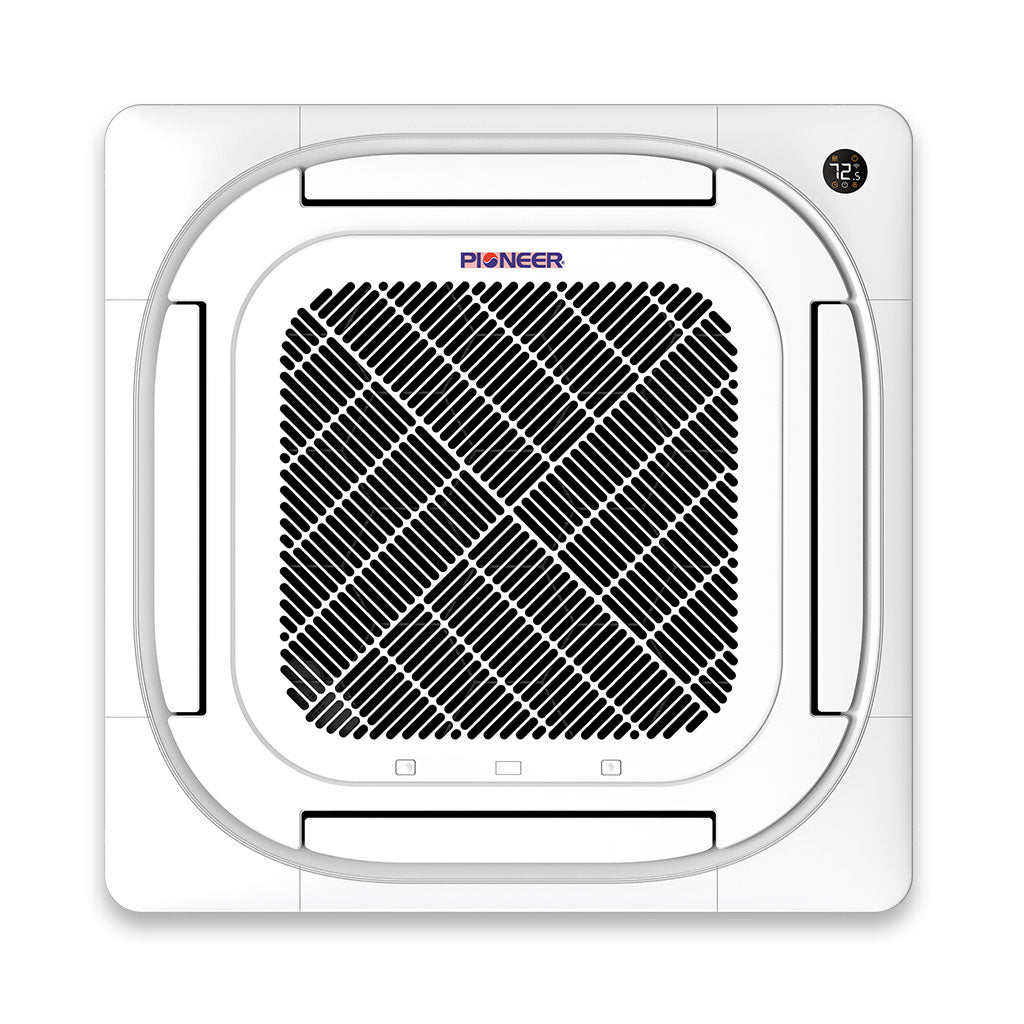

Panel Data
- Net Dimensions (WDH): 37.7 x 37.7 x 2.2 Inches
- Carton Dimensions (WDH): 40.8 x 40.8 x 3.5 Inches
- Net / Gross Weight: 13.2 / 19.8 Lbs

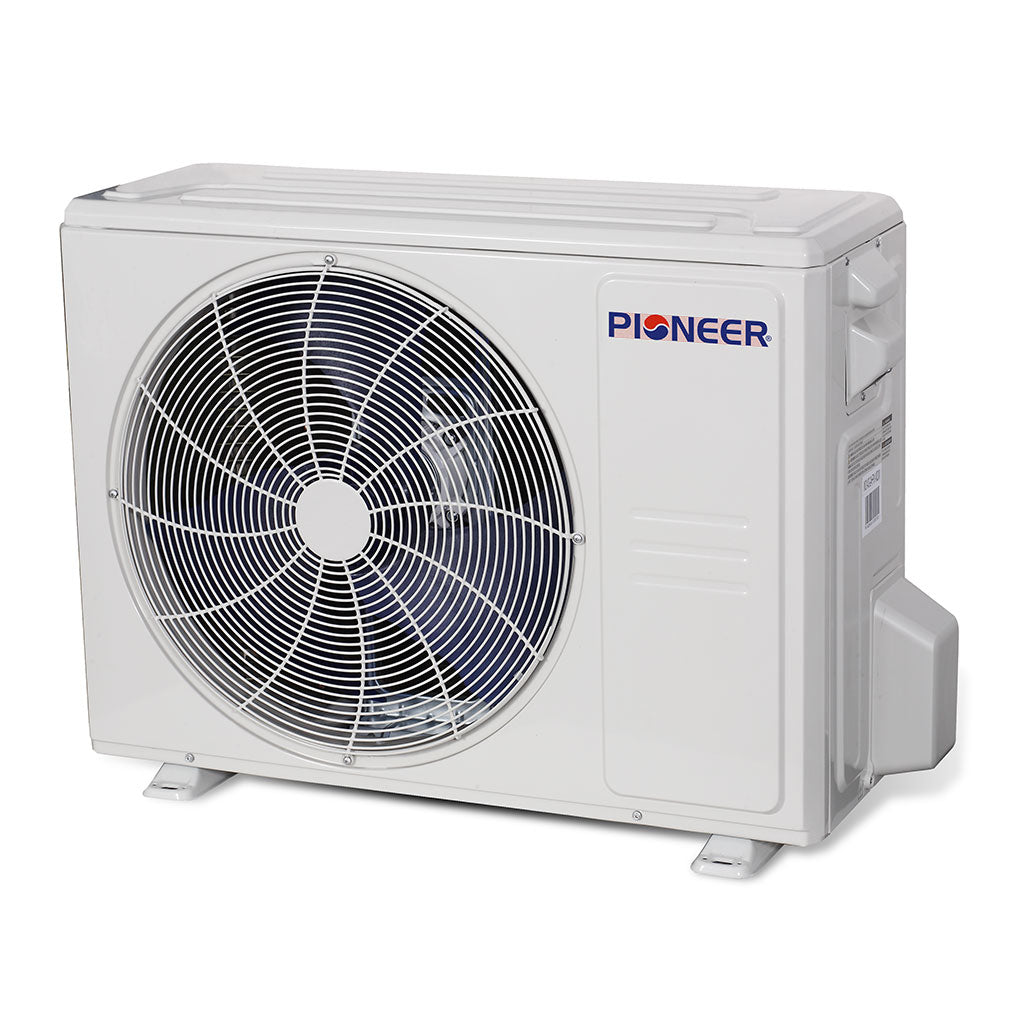

Outdoor Unit Data
- Model: YN024GMFI22RPE
- Breaker Needed: 25A (double-pole)
- Sound Level: 61.0 dB(A)
- Net Dimensions (WDH): 37.2 x 16.2 x 31.8 Inches
- Carton Dimensions (WDH): 42.8 x 19.6 x 34.0 Inches
- Net / Gross Weight: 124.8 / 134.9 Lbs
