Overview
Summary

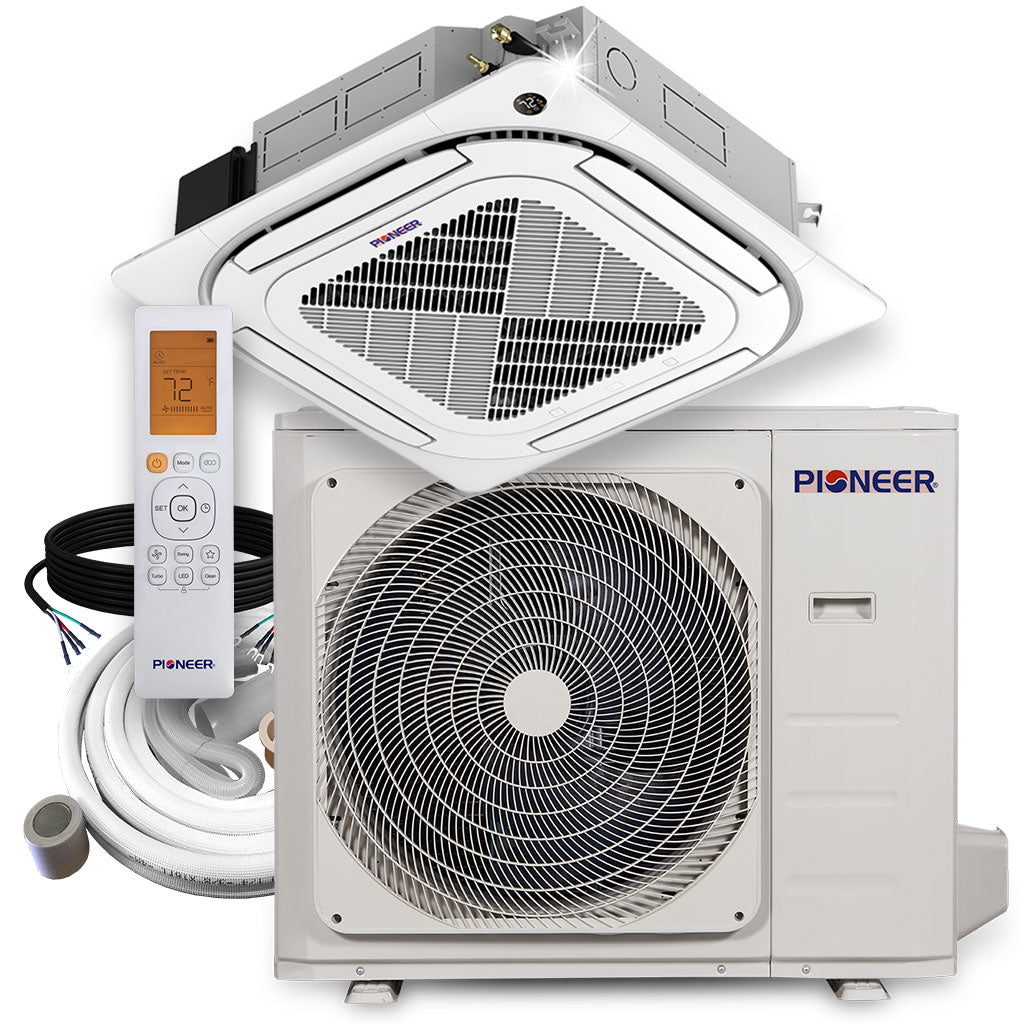

- Ultra-High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 36,000 BTU/H with 19.2 SEER2 / 9.4 EER2 efficiency
- Heating capacity: 38,000 BTU/H with 8.8 HSPF / 3.18 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Ceiling Compact Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $261.00
- Heating: $758.00
[[SERIES]]
What’s Included
- Indoor Unit
- Outdoor Unit
- Panel

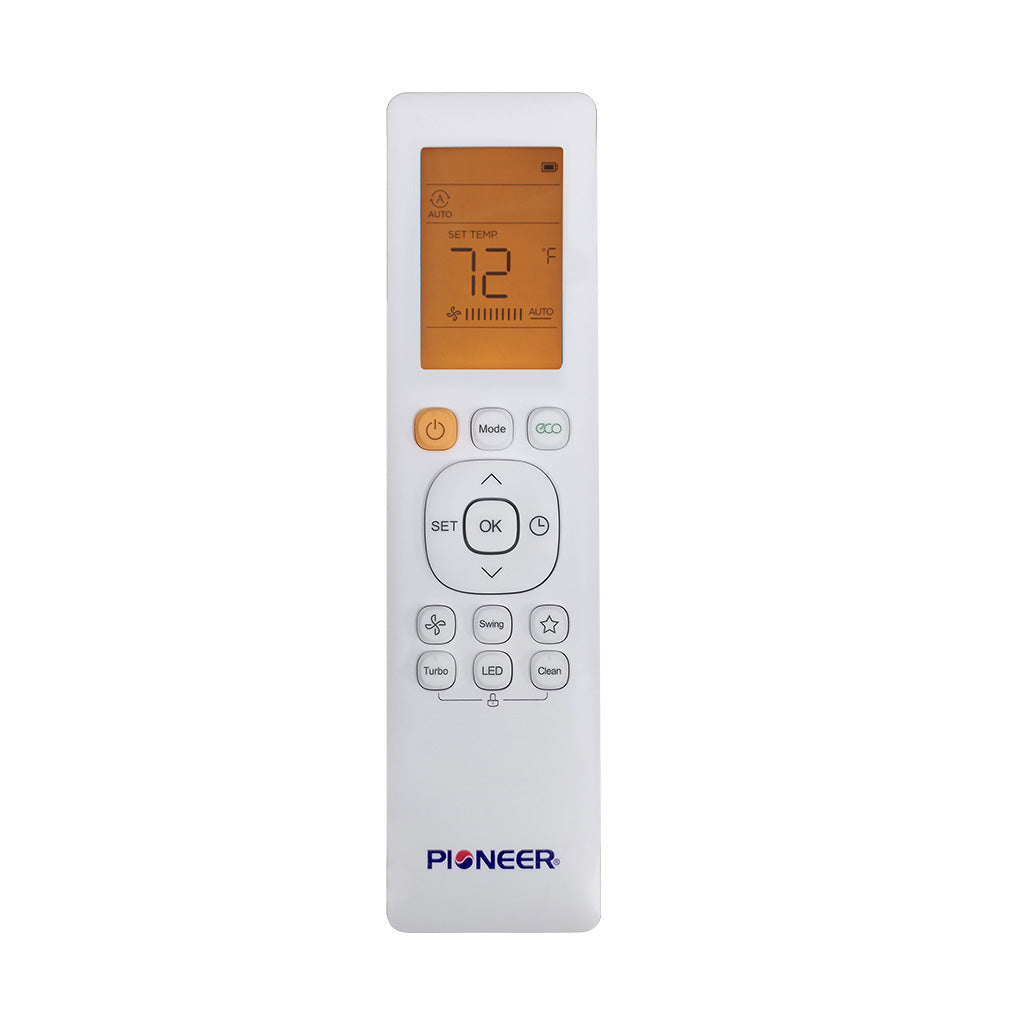

- Wireless Remote Control

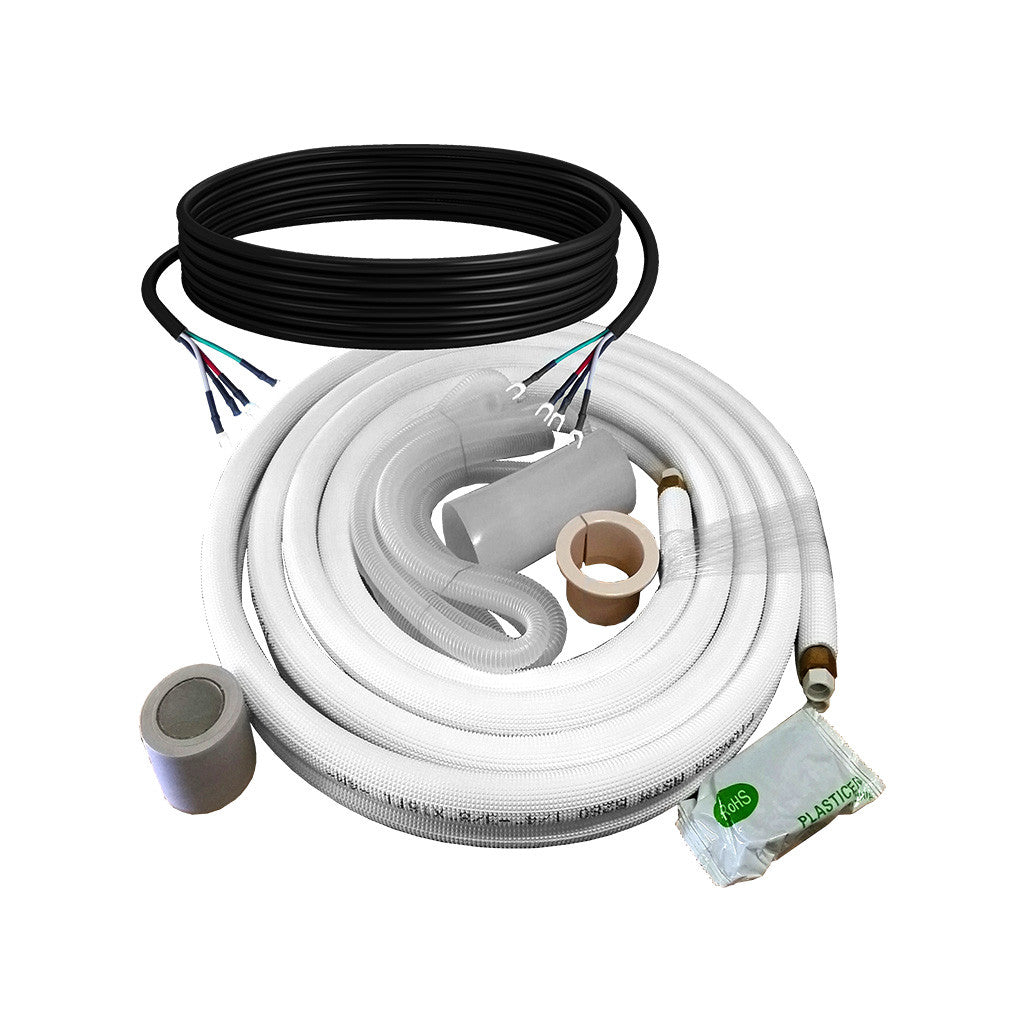

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h
- Cooling Capacity Range: 12,400~36,000 BTU/h
- Cooling SEER2: 19.2 BTU /W.h
- Cooling EER2: 9.0 BTU/W.h
- Heating Rated Capacity: 38,000 BTU/h
- Heating Capacity Range: 11,200~38,000 BTU/h
- Heating HSPF: 8.8 BTU/W.h
- Heating C.O.P.: 3.18 W/W
- Refrigerant Type: R410a
- Suitable Area: 850~1,350 Sq.F
Indoor Unit Data
- Part Number: CB036GMFILDFHE
- Air Flow (Turbo/Hi/Med/Lo): 1041 / 947 / 853 / 753 CFM
- Sound Level (Hi/Med/Lo): 52.5 / 50.0 / 46.5 dB(A)
- Net Dimensions (WDH): 32″-5/8 x 32″-5/8 x 9″-5/8
- Carton Dimensions (WDH): 35″-7/8 x 35″-7/8 x 11″-5/8
- Net / Gross Weight: 60.0 / 69.0 Lbs

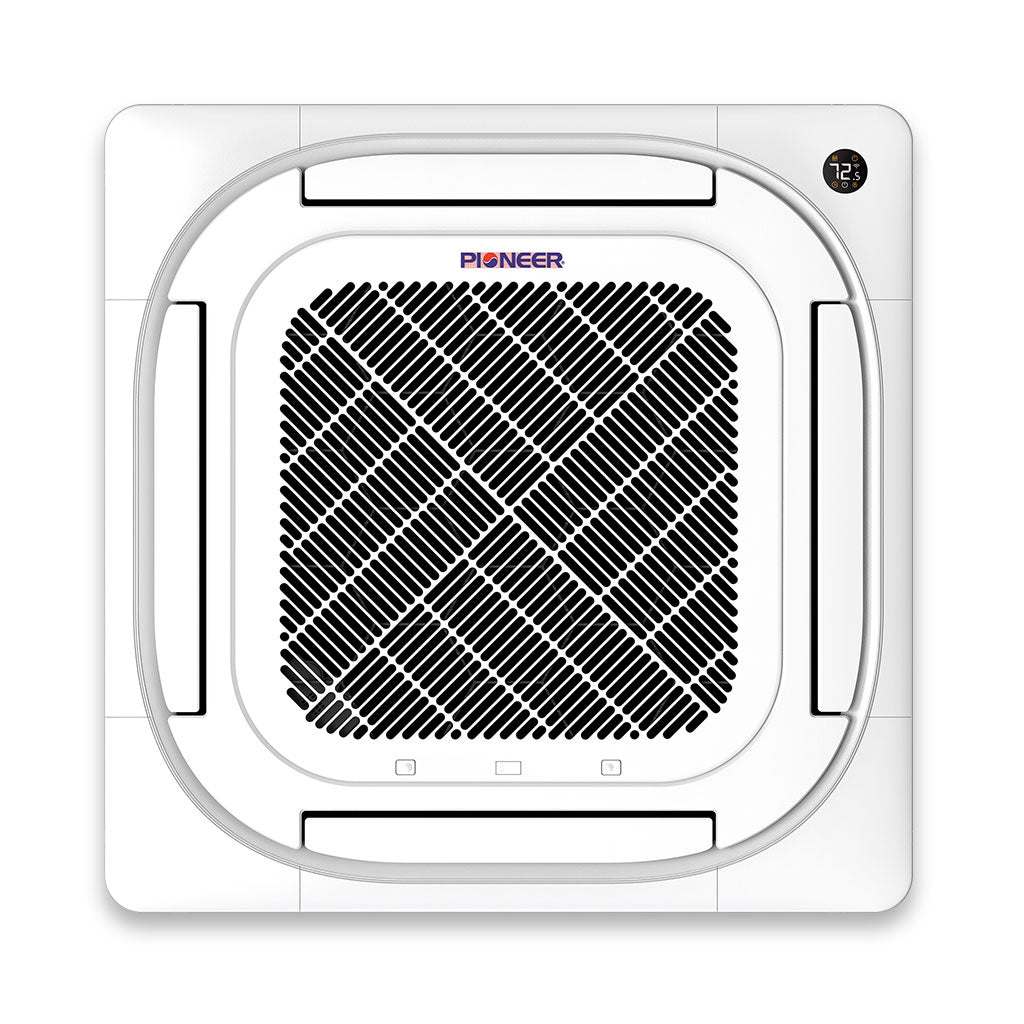

Panel Data
- Net Dimensions (WDH): 37″-5/8 x 37″-5/8 x 2″-1/4
- Carton Dimensions (WDH): 40″-3/4 x 40″-3/4 x 3″-1/2
- Net / Gross Weight: 13.2 / 19.8 Lbs

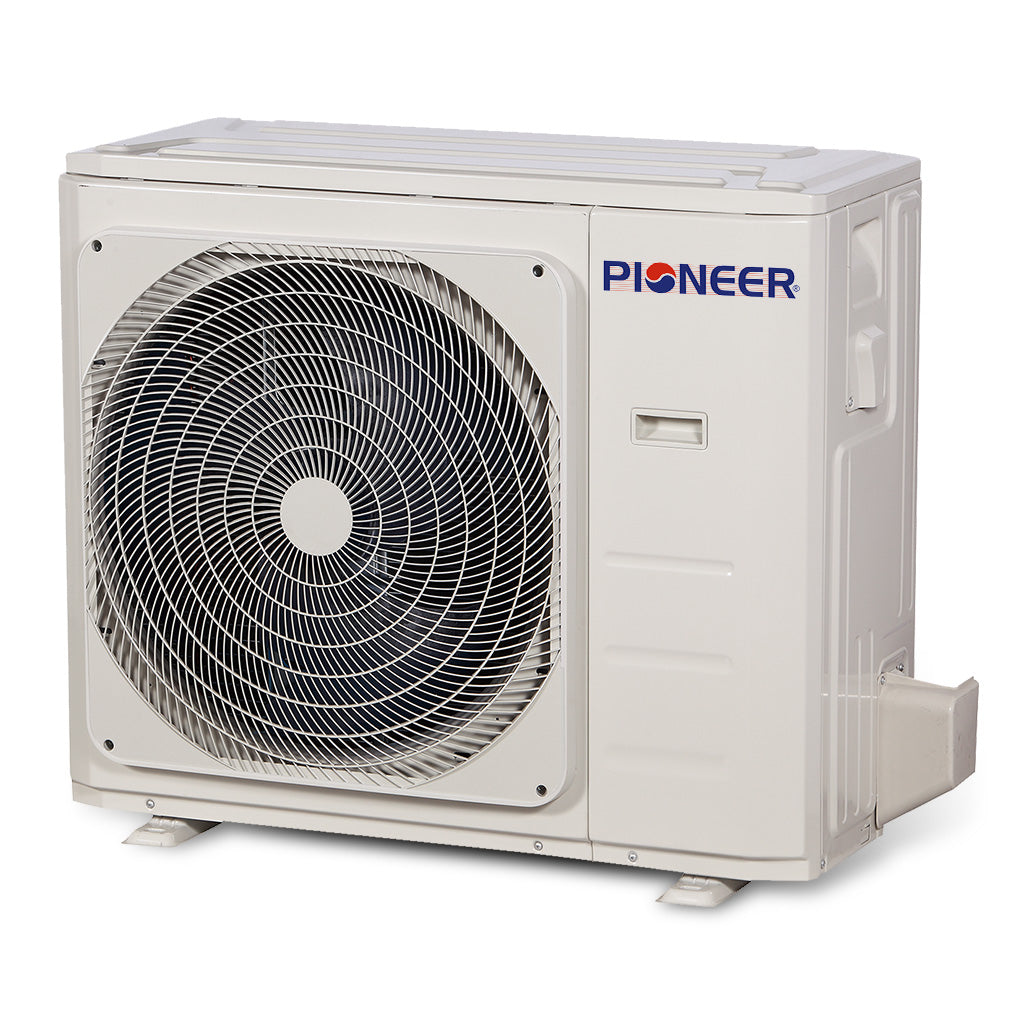

Outdoor Unit Data
- Part Number: YN036GMFI18RUE
- Sound Level: 66.0 dB(A)
- Net Dimensions (WDH): 37″-1/4 x 16″-1/8 x 31″-7/8
- Carton Dimensions (WDH): 42″-7/8 x19″-5/8 x 34″-7/8
- Net / Gross Weight: 155.4 / 166.2 Lbs
- Breaker Needed: 30A (double-pole)
