Overview
Summary

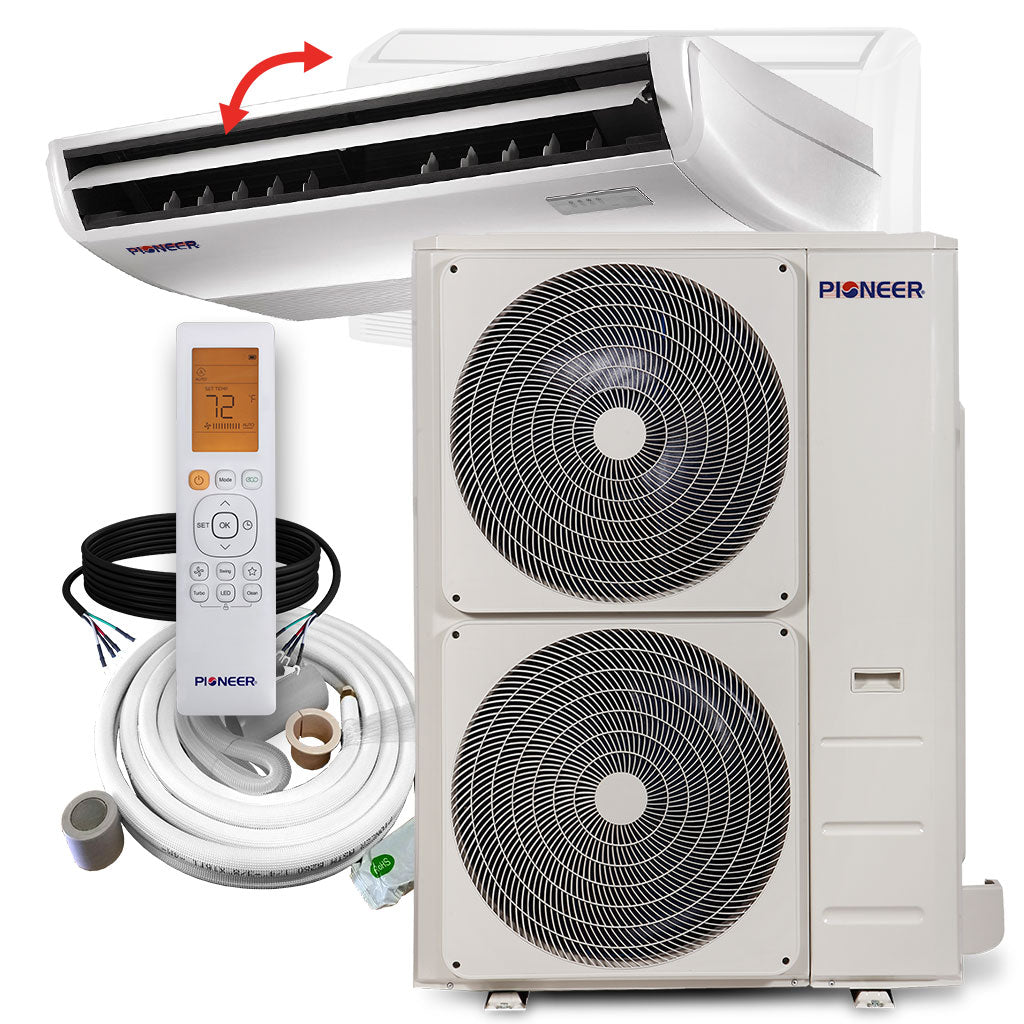

- Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
- Cooling capacity: 48,000 BTU/H with 18.9 SEER2 / 9.3 EER2 efficiency
- Heating capacity: 50,000 BTU/H with 10.0 HSPF2 / 2.5 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Floor/Ceiling Flex Mount Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Energy-Star Cold-Climate Certified
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $352.00
- Heating: $961.00
[[SERIES]]
What’s Included
- Indoor Unit
- Outdoor Unit

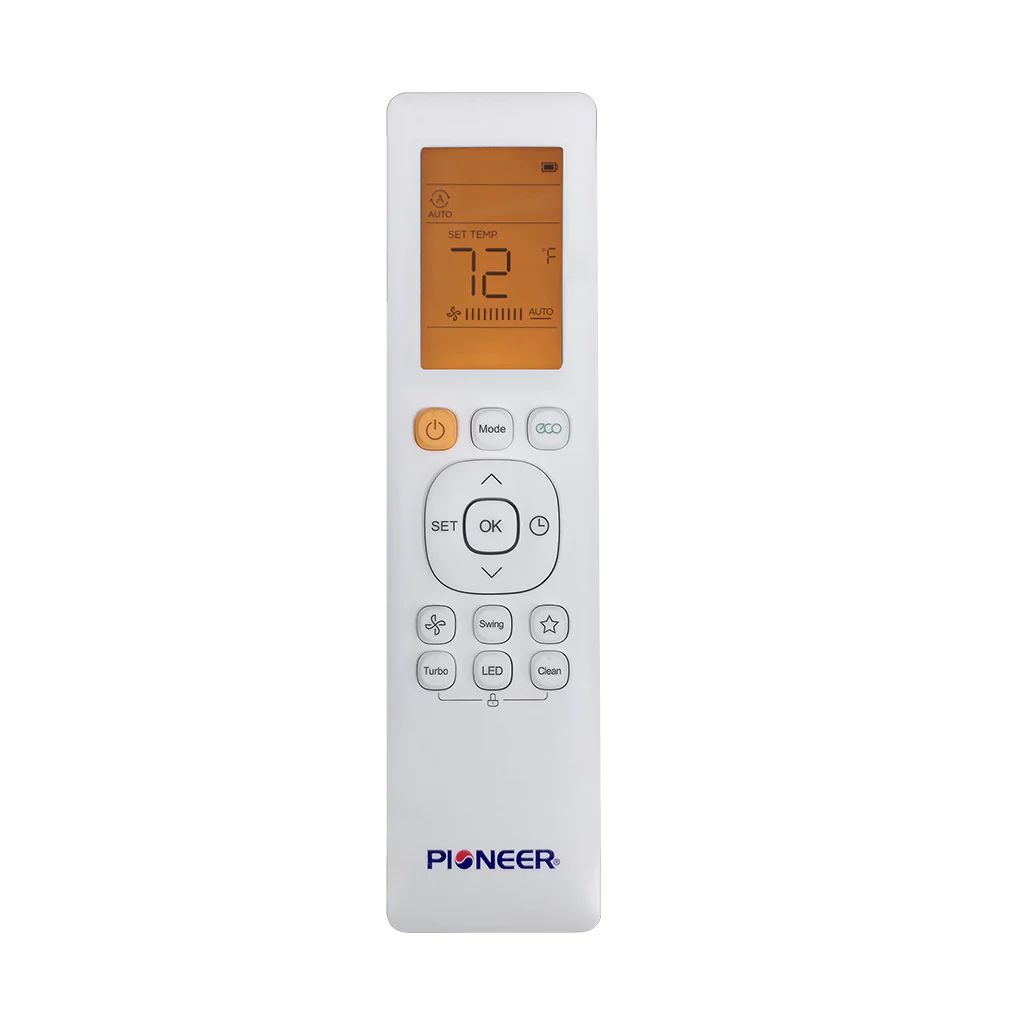

- Wireless Remote Control

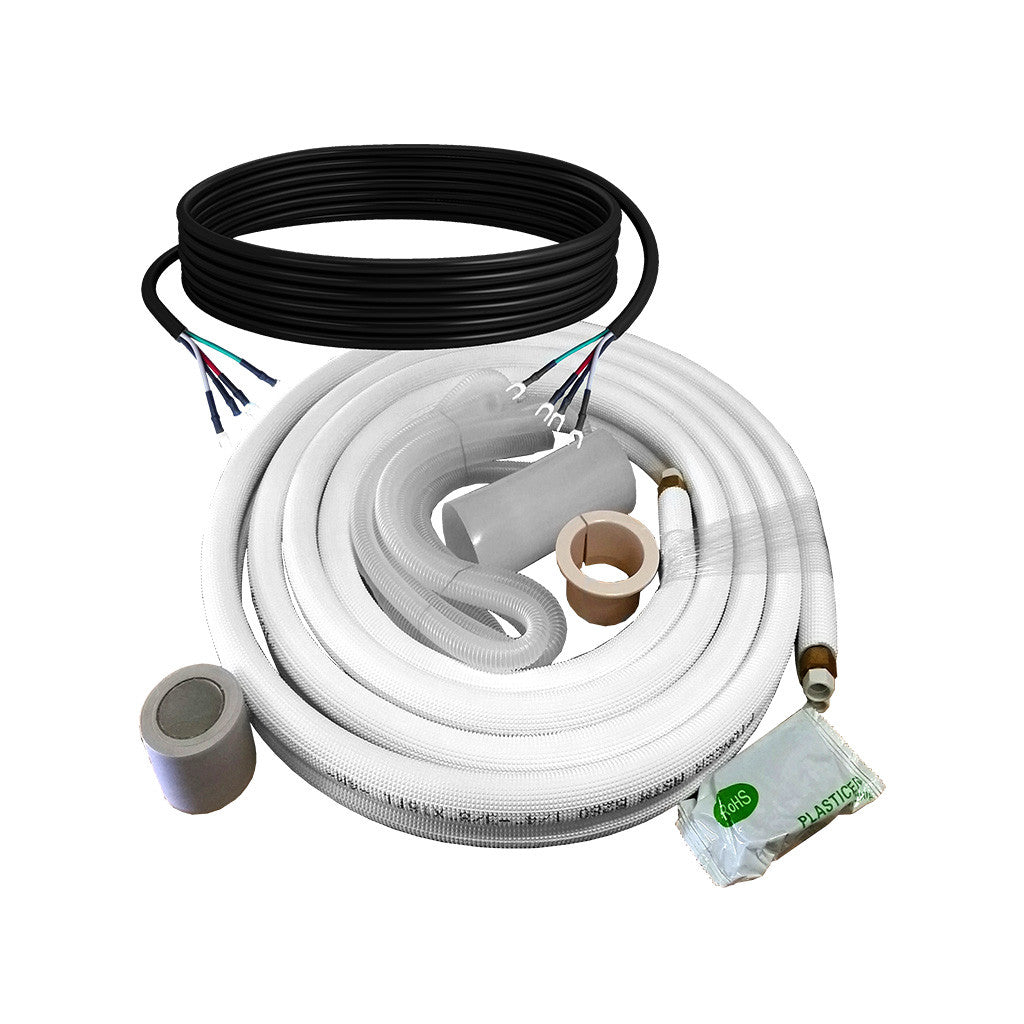

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 48,000 BTU/h
- Cooling Capacity Range: 15,861~48,000 BTU/h
- Cooling SEER2: 18.9 BTU/W.h
- Cooling EER2: 9.3 BTU/W.h
- Heating Rated Capacity: 50,000 BTU/h
- Heating Capacity Range: 21,780~57,300 BTU/h
- Heating HSPF2 (Region IV/V): 10.0 / 7.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.5 / 1.85 W/W
- Refrigerant Type: R410a
- Suitable Area: 1,350~1,800 Sq.F

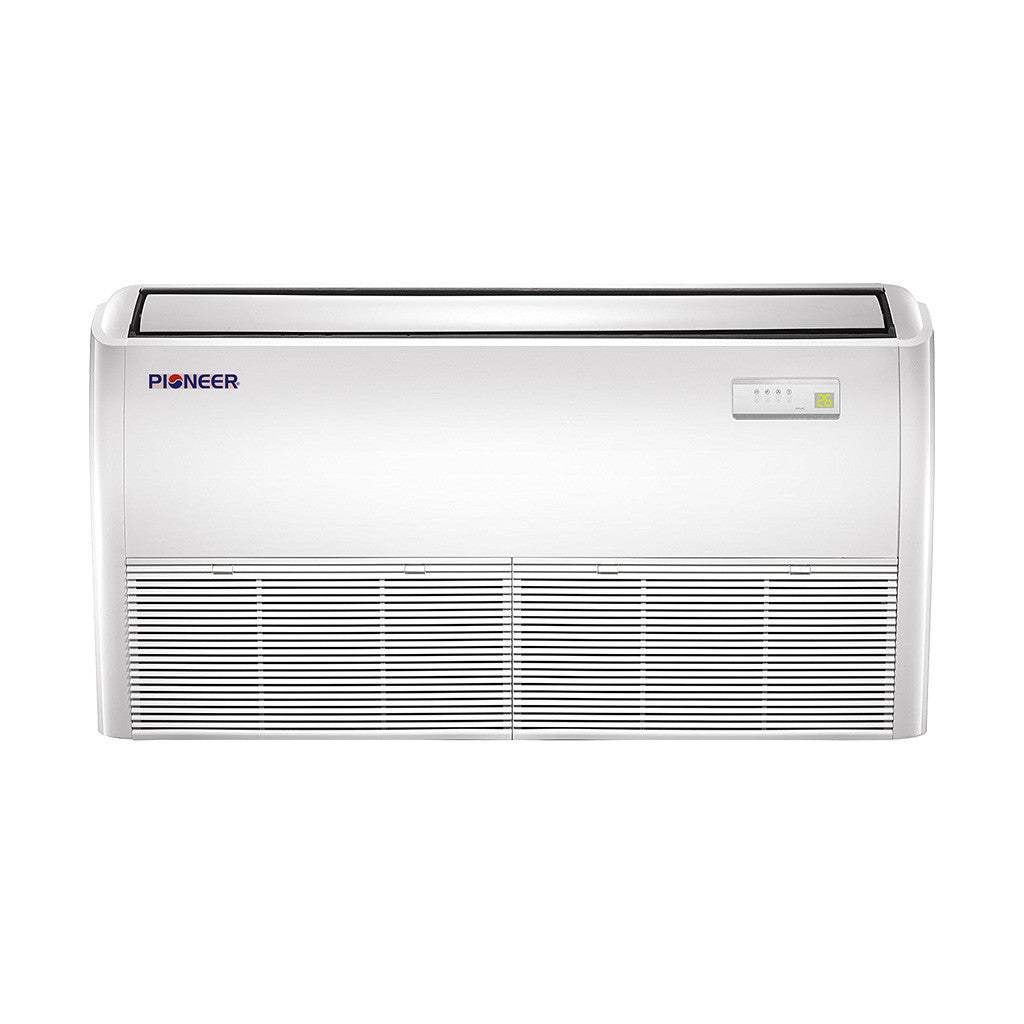

Indoor Unit Data
- Model: UB048GMFILCFHD
- Air Flow (Hi/Med/Lo): 1,320 / 1,200 / 1,120 CFM
- Sound Level (Hi/Med/Lo): 55.0 / 49.5 / 44.5 dB(A)
- Net Dimensions (WDH): 65.0 x 26.5 x 9.3 Inches
- Carton Dimensions (WDH): 68.0 x 29.8 x 12.4 Inches
- Net / Gross Weight: 87.7 / 102.3 Lbs

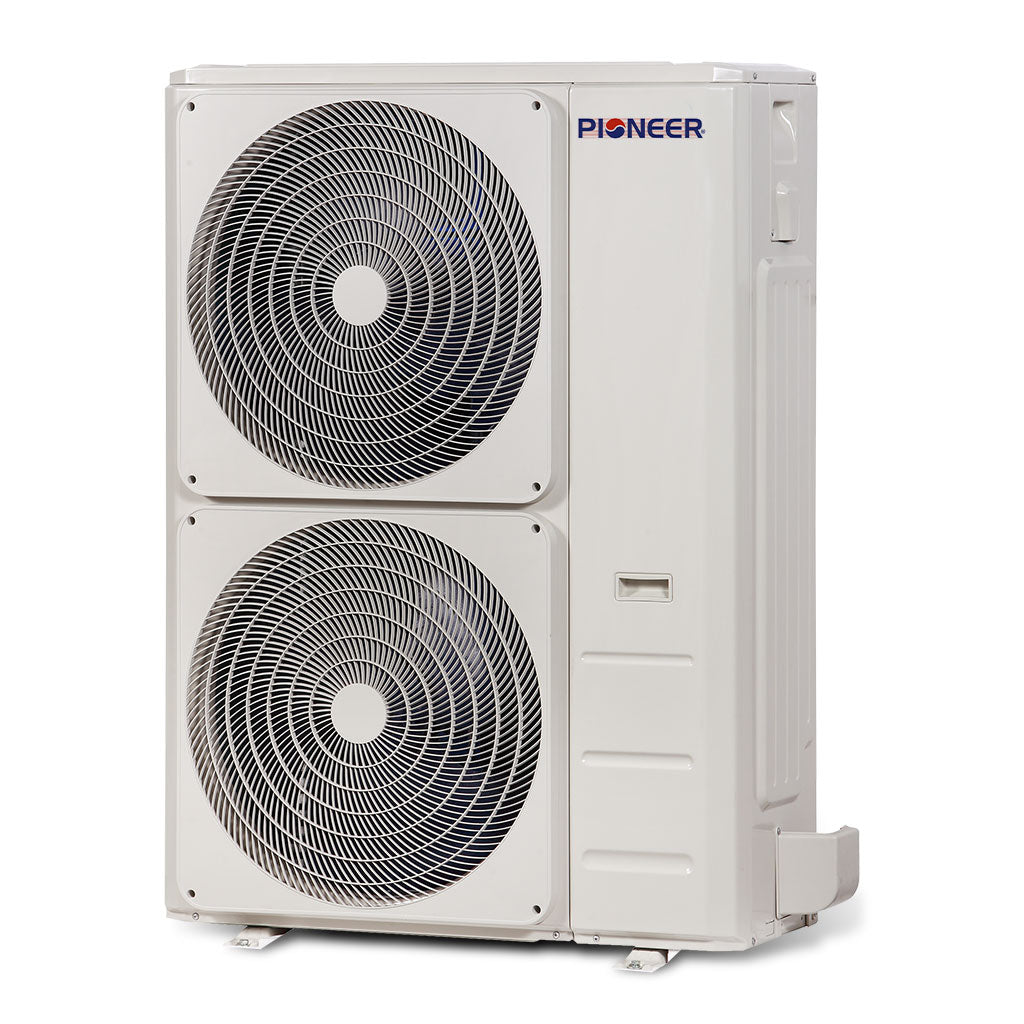

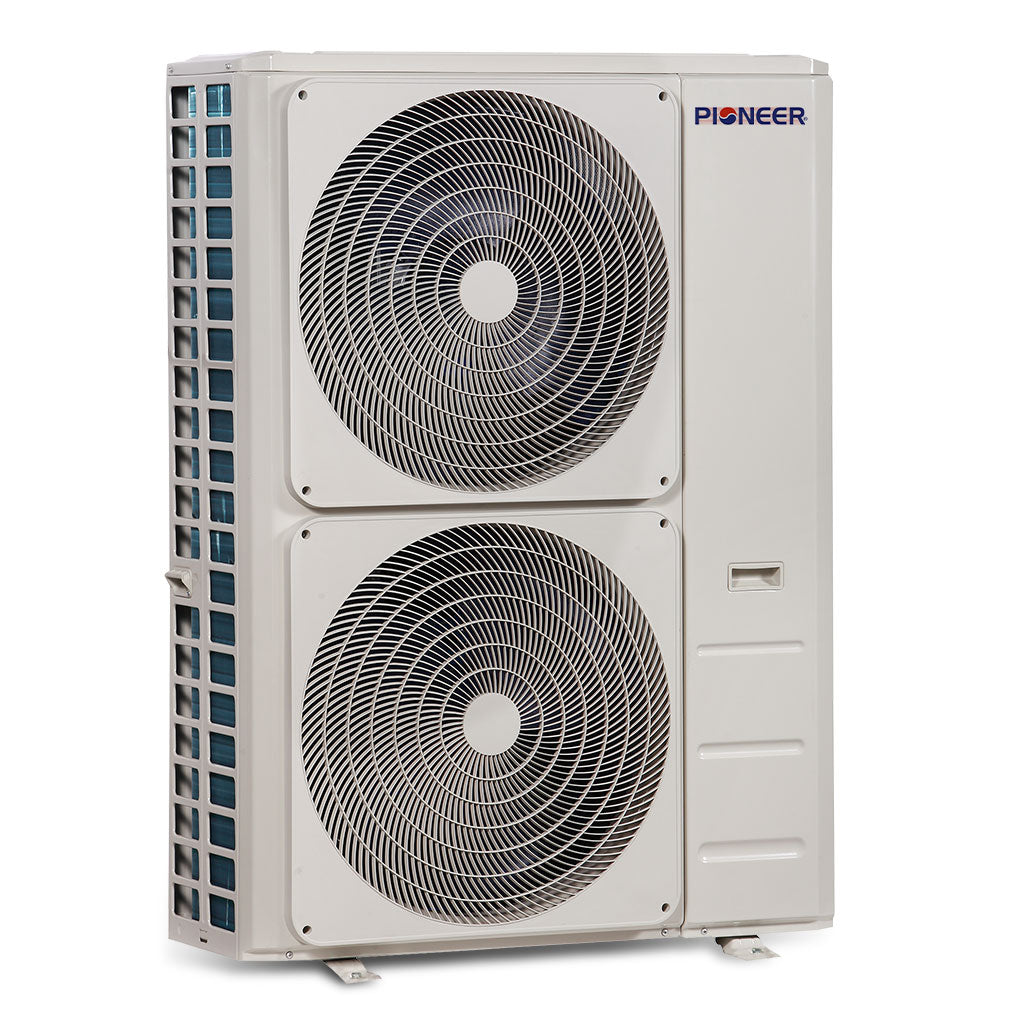

Outdoor Unit Data
- Model: YN048GMFI18RUE
- Breaker Needed: 40A (double-pole)
- Sound Level: 65.0 dB(A)
- Net Dimensions (WDH): 37.5 x 16.4 x 52.5 Inches
- Carton Dimensions (WDH): 43.2 x 19.8 x 58.5 Inches
- Net / Gross Weight: 219.1 / 249.1 Lbs
