Overview
Summary

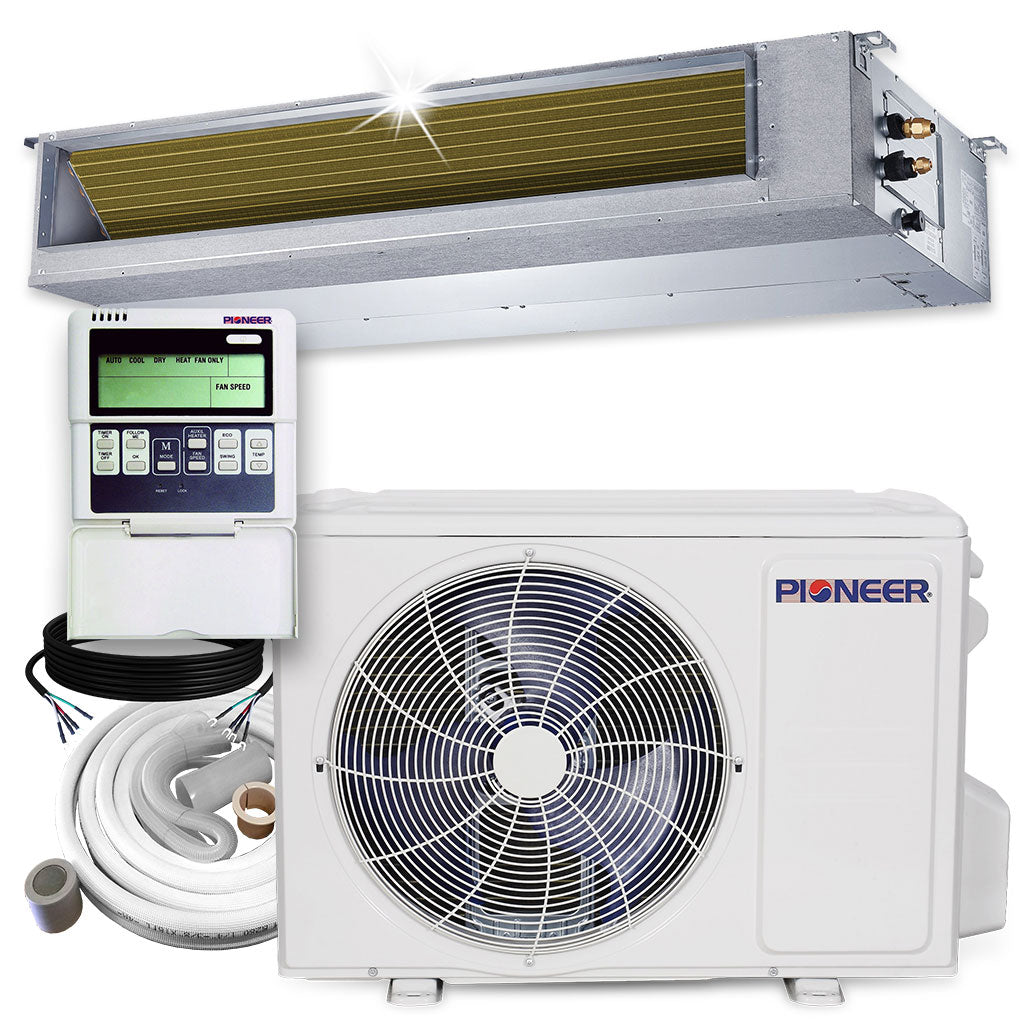

- Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
- Cooling capacity: 9,000 BTU/H with 19.2 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 10.2 HSPF2/ 3.62 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Ceiling Concealed Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $57.00
- Heating: $184.00
[[SERIES]]
What’s Included
- Indoor Unit
- Outdoor Unit

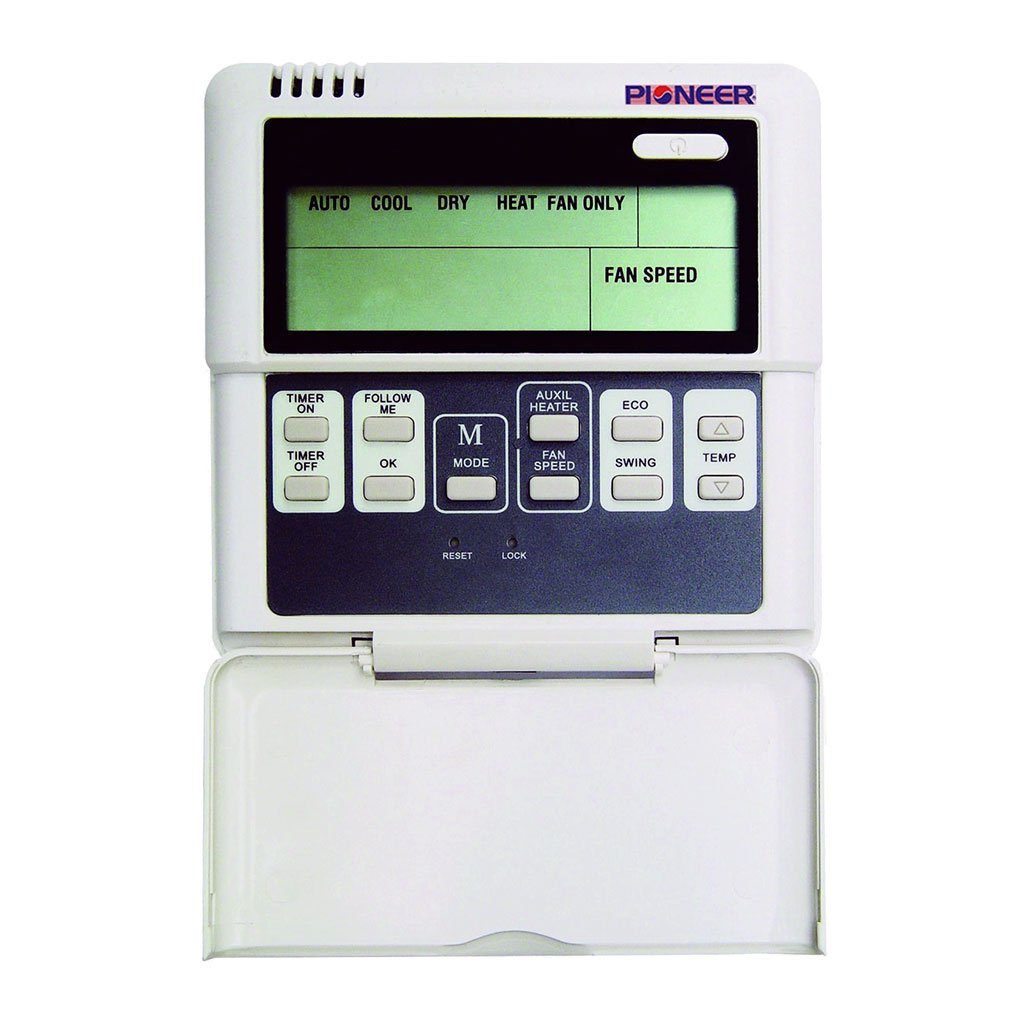

- Wire Remote Control

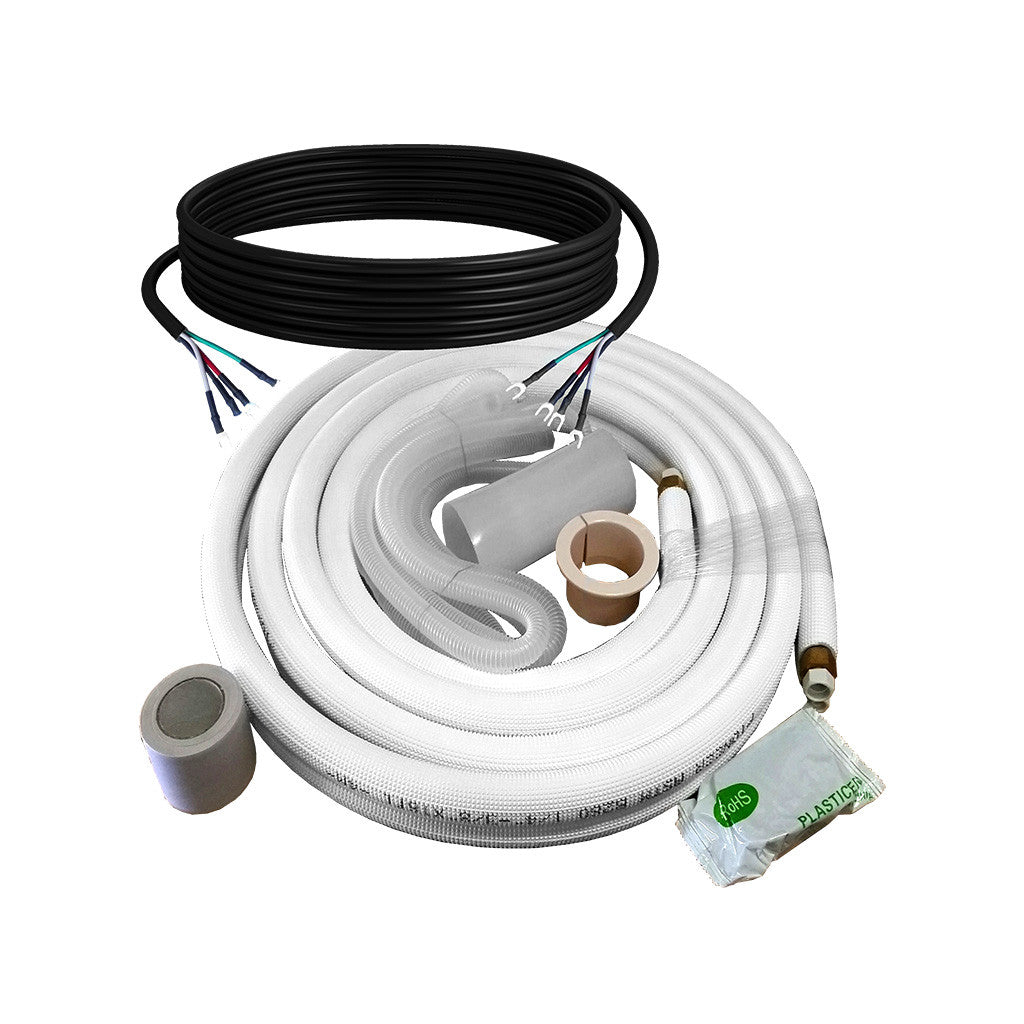

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 2,220~11,600 BTU/h
- Cooling SEER2: 19.2 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 2,240~13,350 BTU/h
- Heating HSPF2 (Region IV/V): 10.2 / 8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.62 / 2.09 W/W
- Refrigerant Type: R410a
- Suitable Area: 100~350 Sq.F

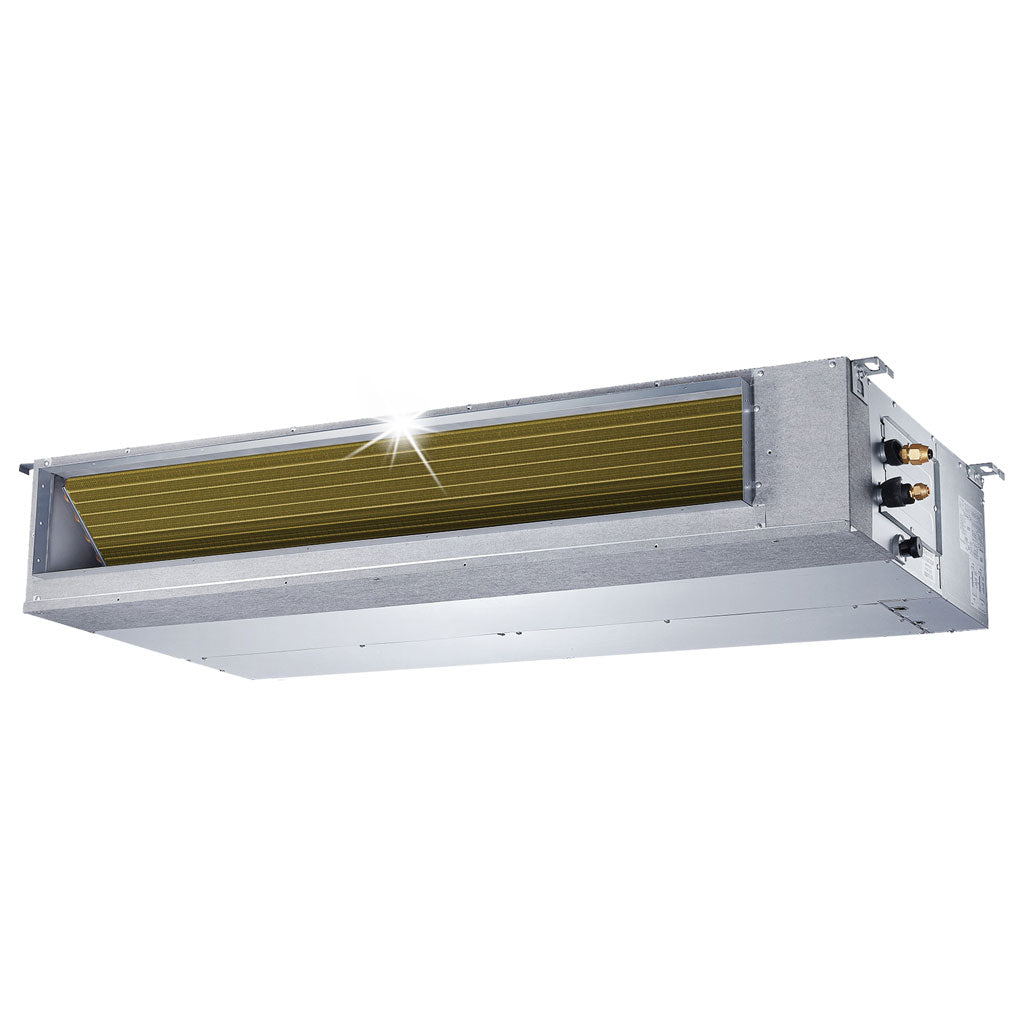

Indoor Unit Data
- Part Number: RB009GMFILDFHD
- Air Flow (Hi/Med/Lo): 353 / 282 / 176 CFM
- External Static Pressure: 0.0~0.16 Inch WC
- Sound Level (Hi/Med/Lo): 33.5 / 28.5 / 27.0 dB(A)
- Net Dimensions (WDH): 27″-1/2 x 20″ x 7″-7/8
- Carton Dimensions (WDH): 33″-7/8 x 21″-1/4 x 11″-1/4
- Net / Gross Weight: 39.0 / 48.3 Lbs

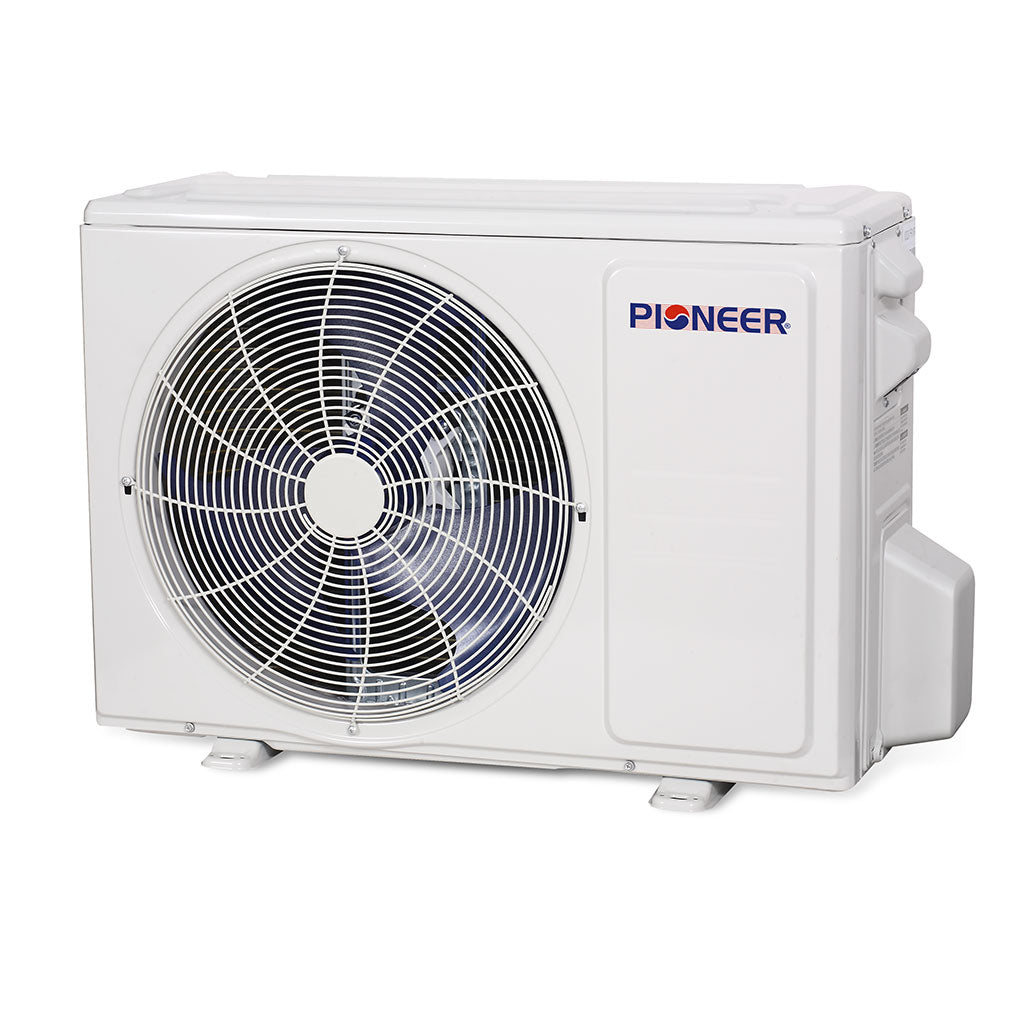

Outdoor Unit Data
- Part Number: YN009GMFI22RPE
- Sound Level: 54.5 dB(A)
- Breaker Needed: 15A (double-pole)
- Net Dimensions (WDH): 30″-1/8 x 11″-7/8 x 21″-7/8
- Carton Dimensions (WDH): 34″-7/8 x 13″-1/4 x 24″
- Net / Gross Weight: 63.7 / 69.0 Lbs
