Overview
Summary
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 9,000 BTU/H with 20 SEER/12.5 EER efficiency
- Heating capacity: 9,000 BTU/H with 10 HSPF/2.93 COP efficiency
- Voltage: 110~120V, 60 Hertz, 1 Ph
- Ceiling Compact Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $58.00
- Heating: $211.00
[[SERIES]]

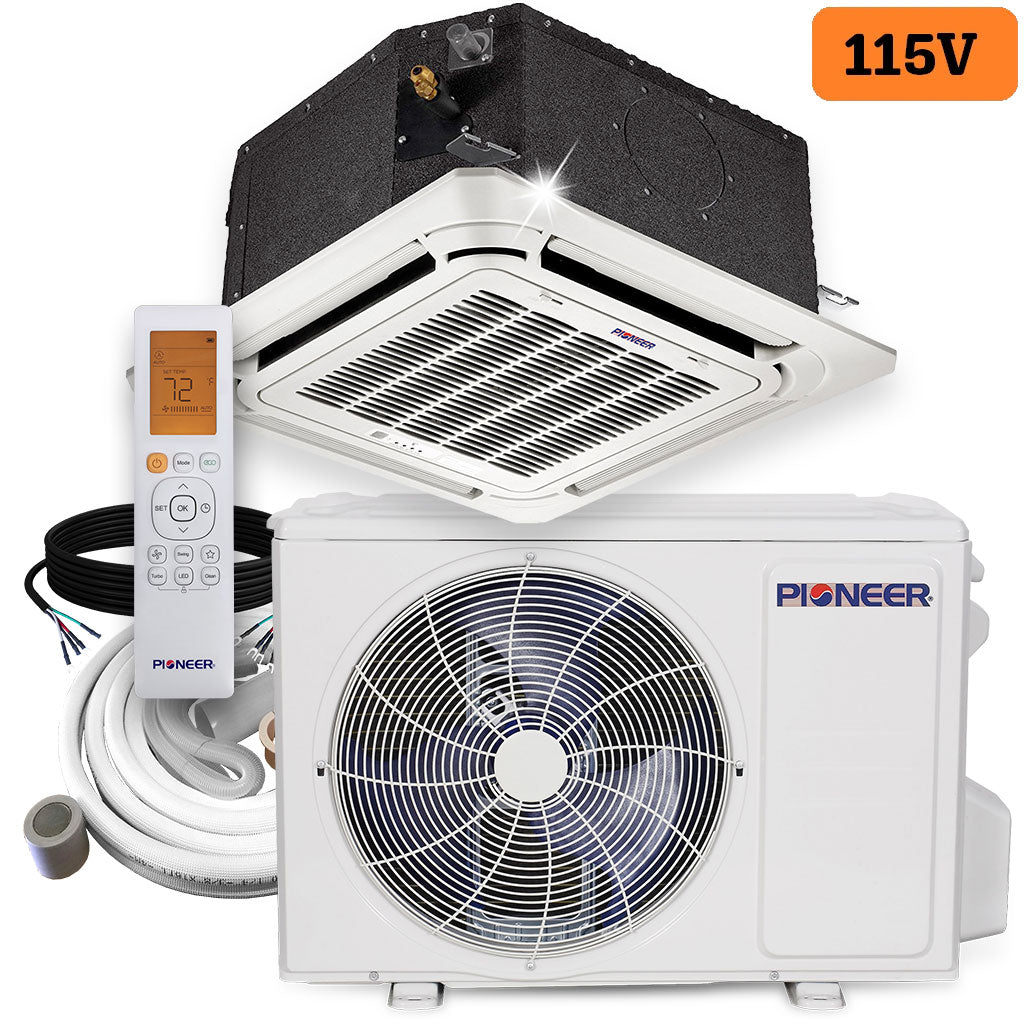

What’s Included
- Indoor Unit
- Outdoor Unit
- Panel

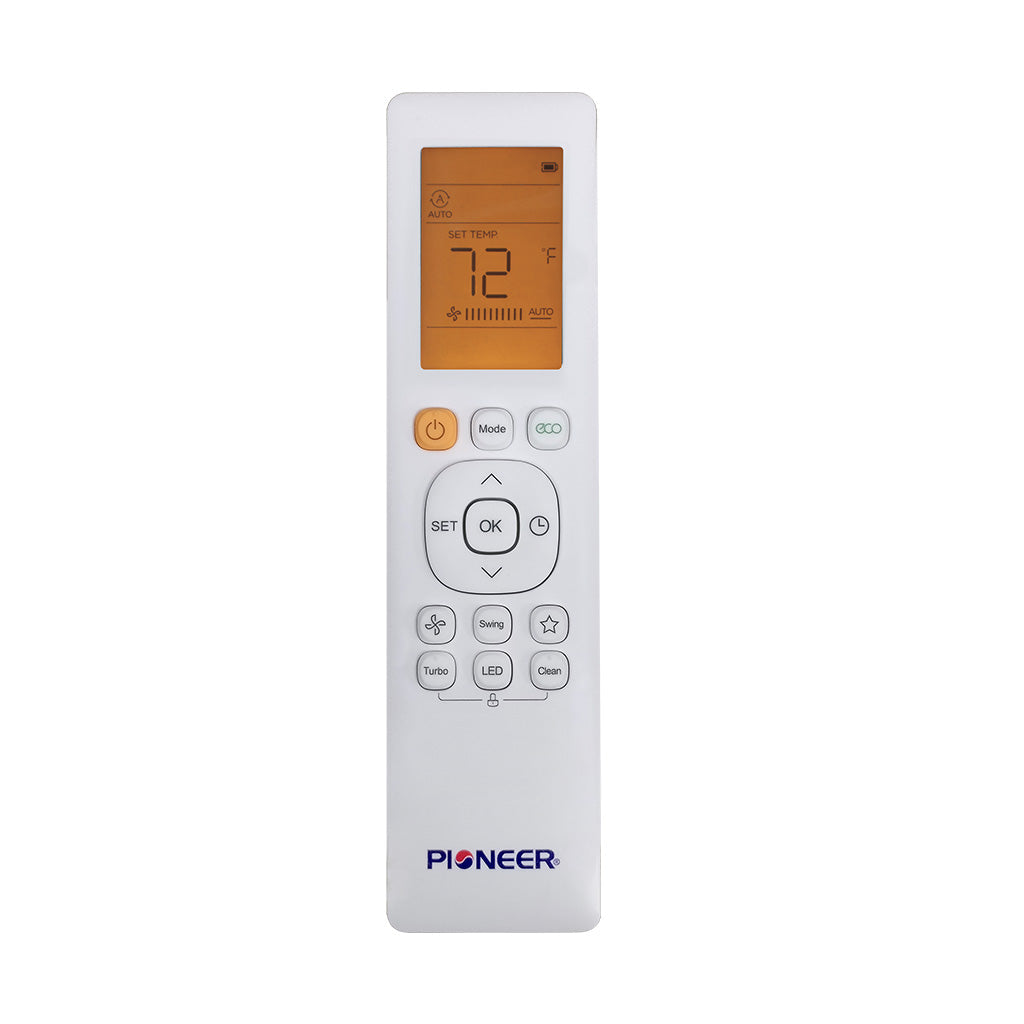

- Wireless Remote Control

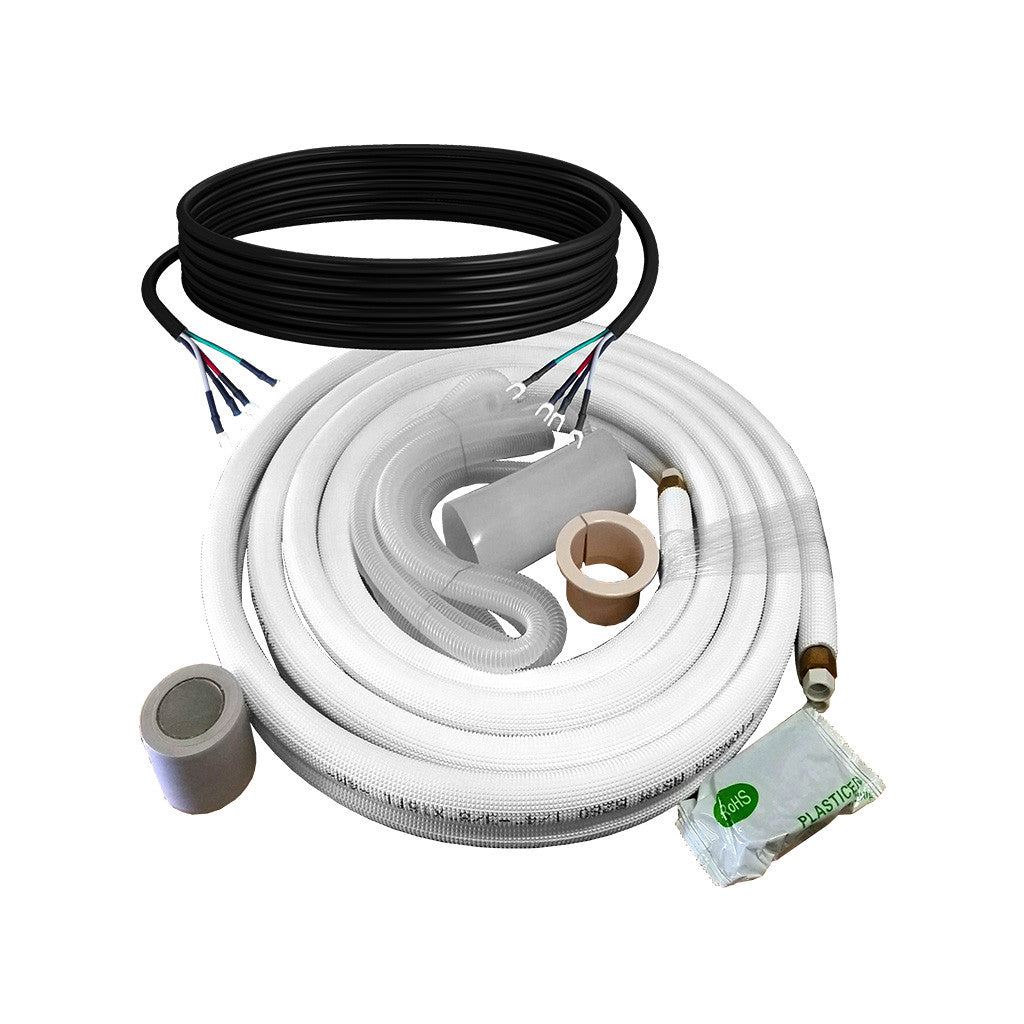

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 2,650~10,300 BTU/h
- Cooling SEER: 20 BTU/w
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 2,700~10,500 BTU/h
- Heating HSPF: 10.0 BTU/w
- Refrigerant Type: R410a
- Suitable Area: 100~350 Sq.F

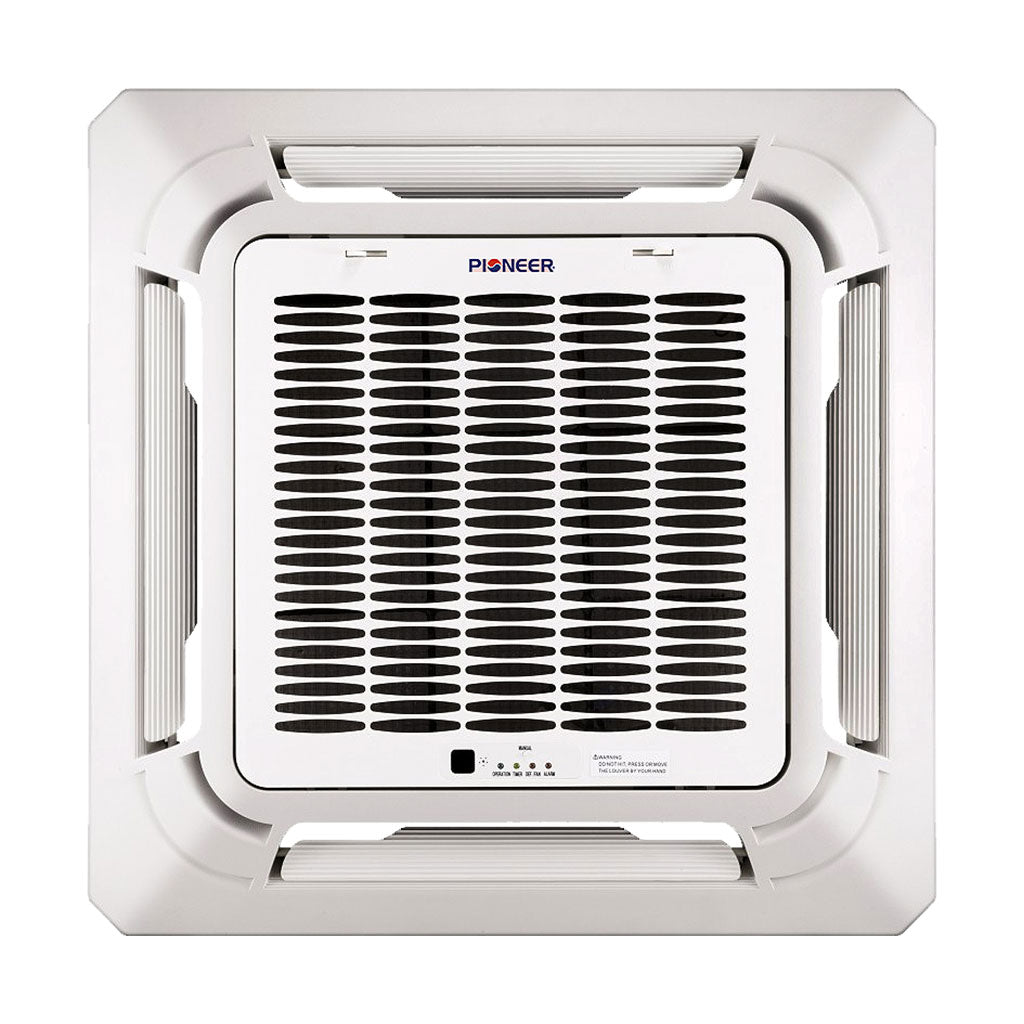

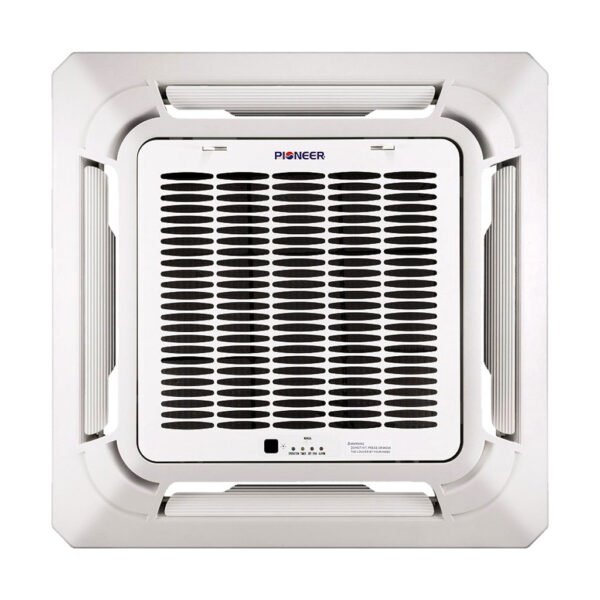

Indoor Unit Data
- Model: CB009GMFILCFHD
- Air Flow (Hi/Med/Lo): 379 / 309 / 261 CFM
- Sound Level (Hi/Med/Lo): 43.0 / 39.0 / 36.0 dB(A)
- Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
- Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
- Net / Gross Weight: 35 / 41 Lbs
Panel Data
- Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
- Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
- Net / Gross Weight: 6 / 10 Lbs

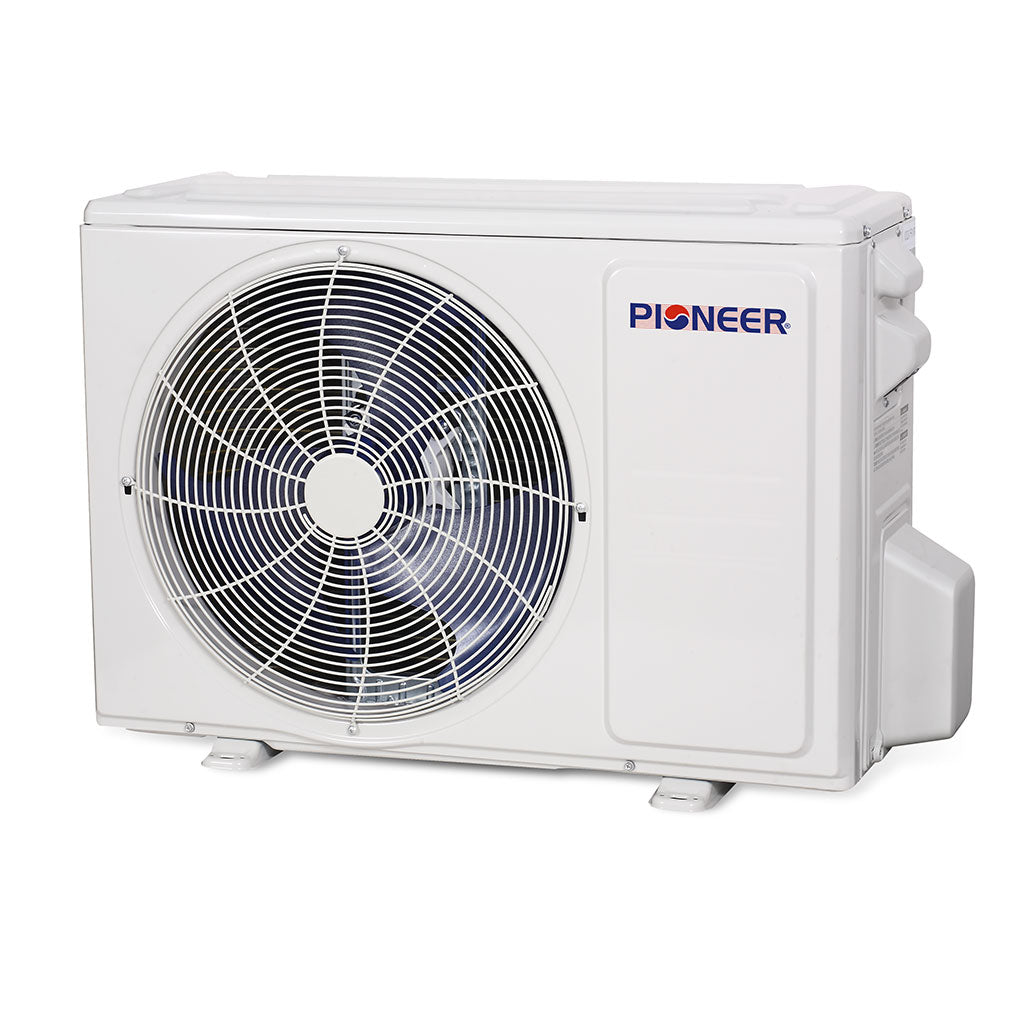

Outdoor Unit Data
- Model: YN009AMFI20RPD
- Sound Level: 54.0 dB(A)
- Net Dimensions (WDH): 30″-1/8 x 11″-15/16 x 21″-7/8
- Carton Dimensions (WDH): 35″ x 13″-1/4 x 24″
- Net / Gross Weight: 57.75 / 63.5 Lbs
