Overview
Summary

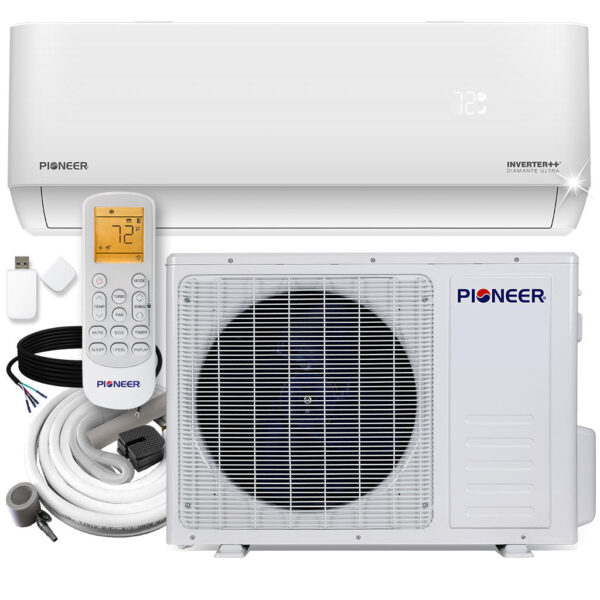

- Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 9.0 HSPF2 / 3.5 COP2 efficiency
- Voltage: 110/120V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- Wireless Internet Access Included (Via Free Smartphone App)
- AHRI Estimated Annual Operating Costs:
- Cooling: $54.00
- Heating: $201.00
[[SERIES]]

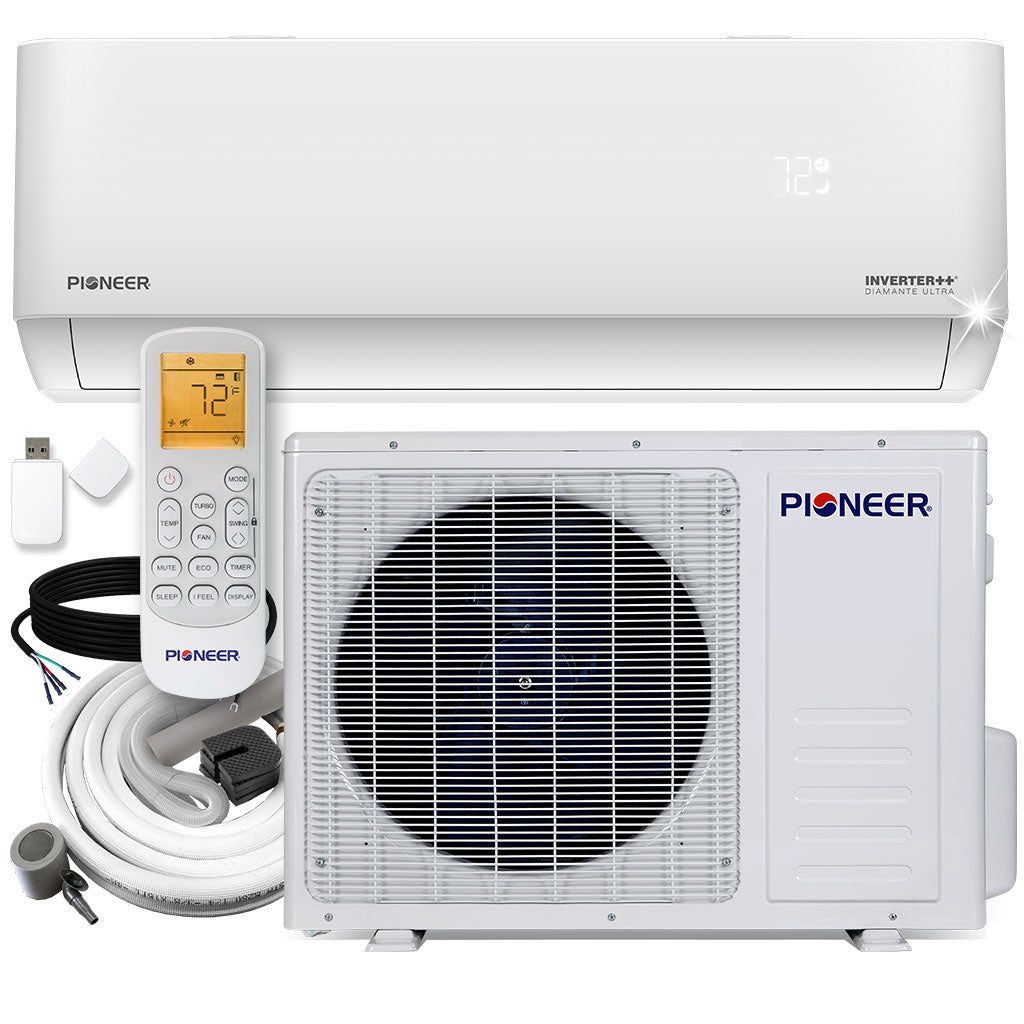

What’s Included
- Indoor Unit
- Outdoor Unit

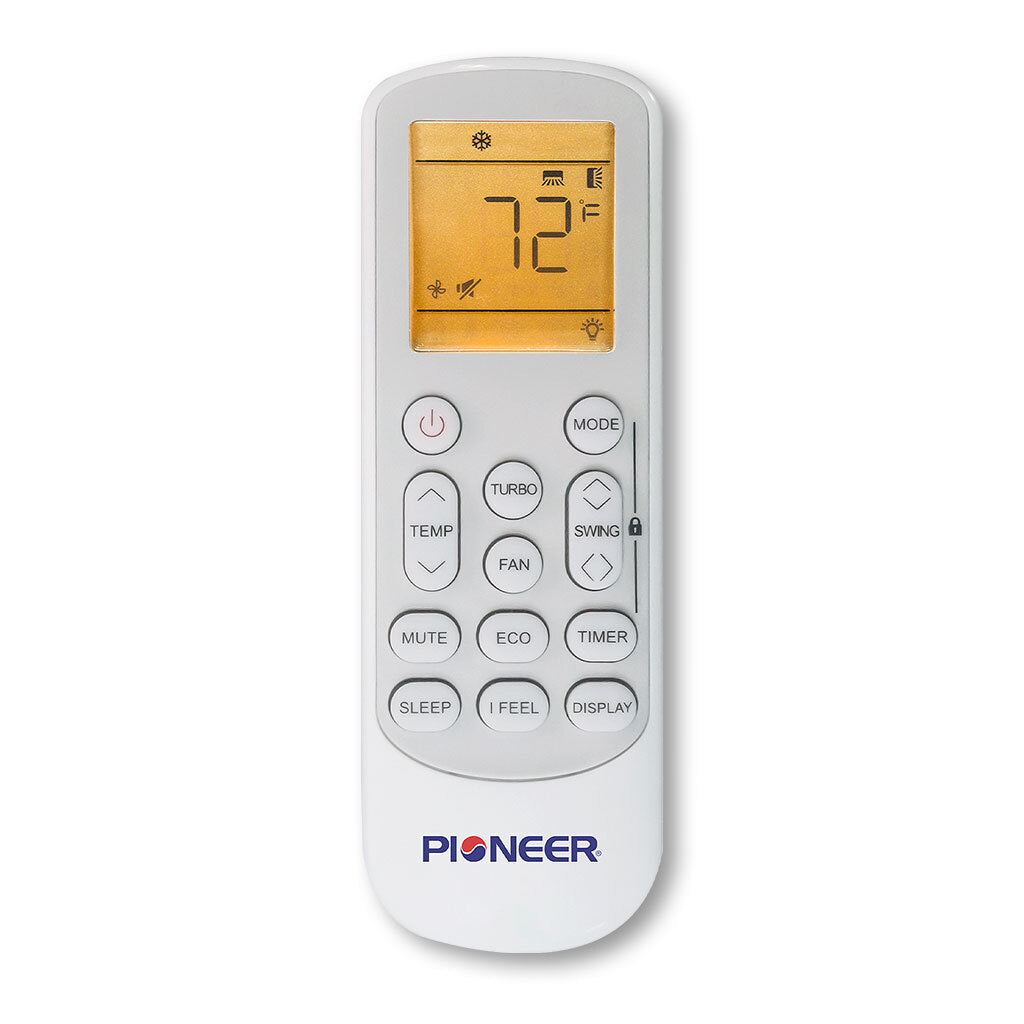

- Wireless Remote Control (with wall holder and batteries)

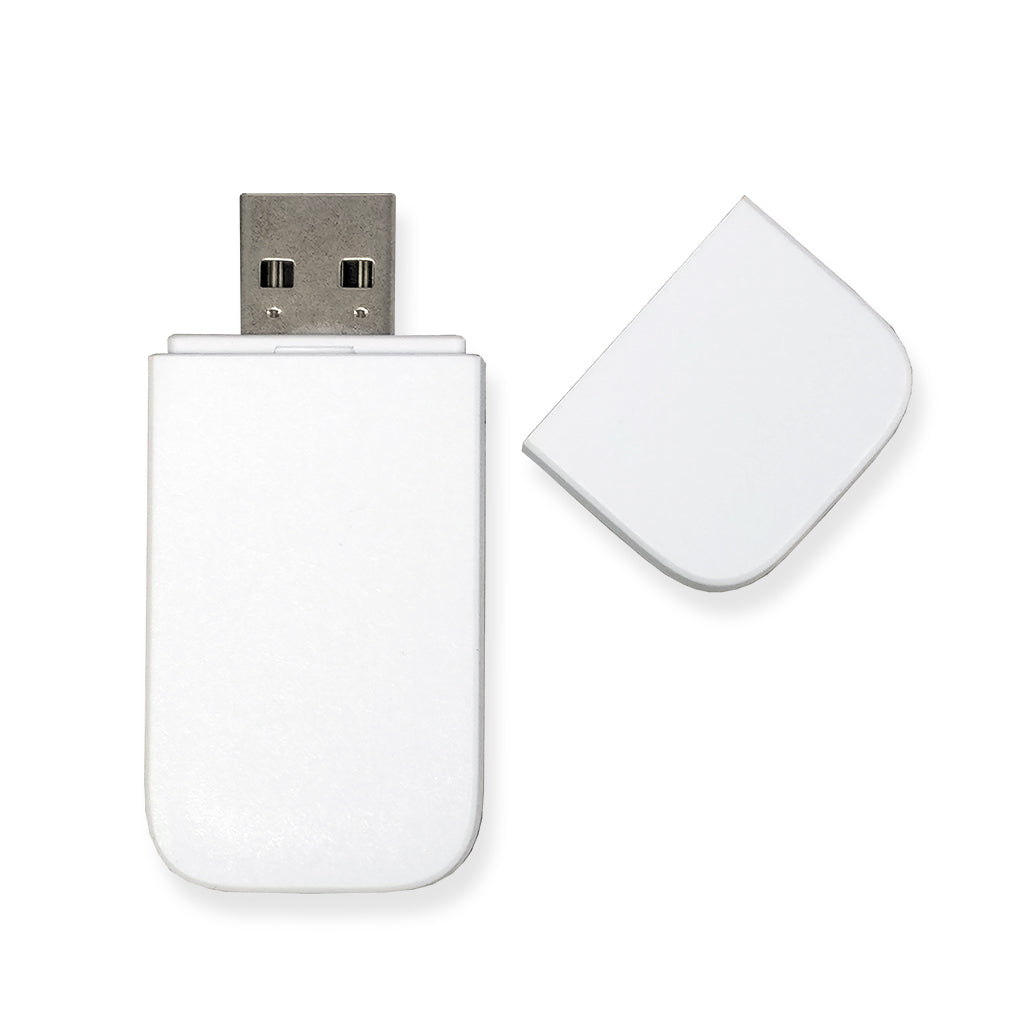

- Internet Control Module

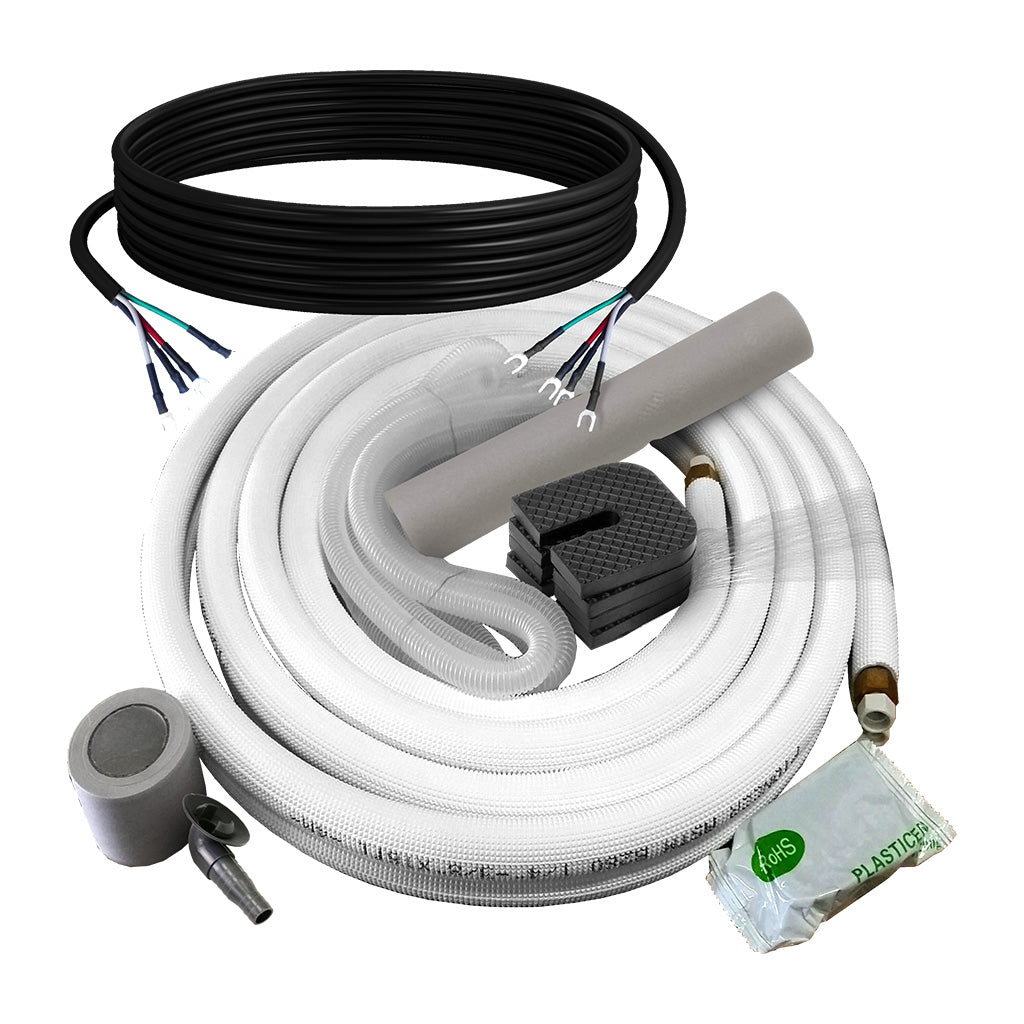

- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts (Extendable to up to 7 years)
- 5 years for Compressor (Extendable to up to 10 years)
Features
[[FEATURES]]
Technical Information
Performance Data
- Power Supply: 115V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h (0.75 Ton)
- Rated Power Input (Cooling): 710W
- Cooling SEER2: 23.0 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 9,500 BTU/h (0.8 Ton)
- Rated Power Input (Heating): 730W
- Heating HSPF2: 9.0 BTU/W.h
- Heating C.O.P.: 3.5 W/W
- Refrigerant Type: R410A
- Recommended Application Area: 100~350 Sq.Ft

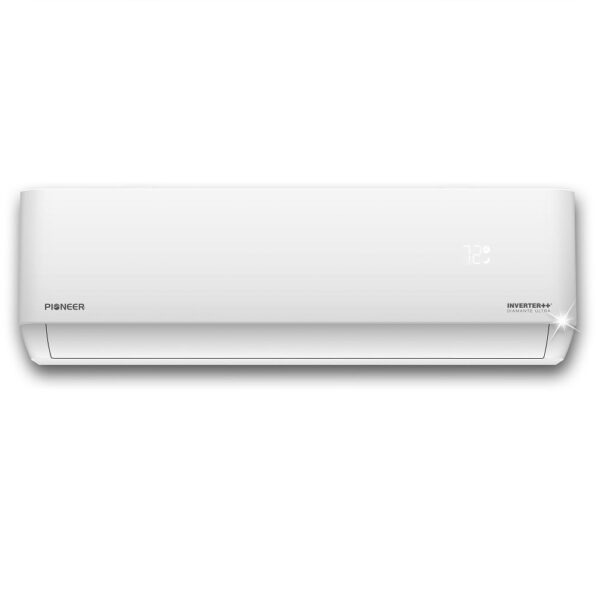

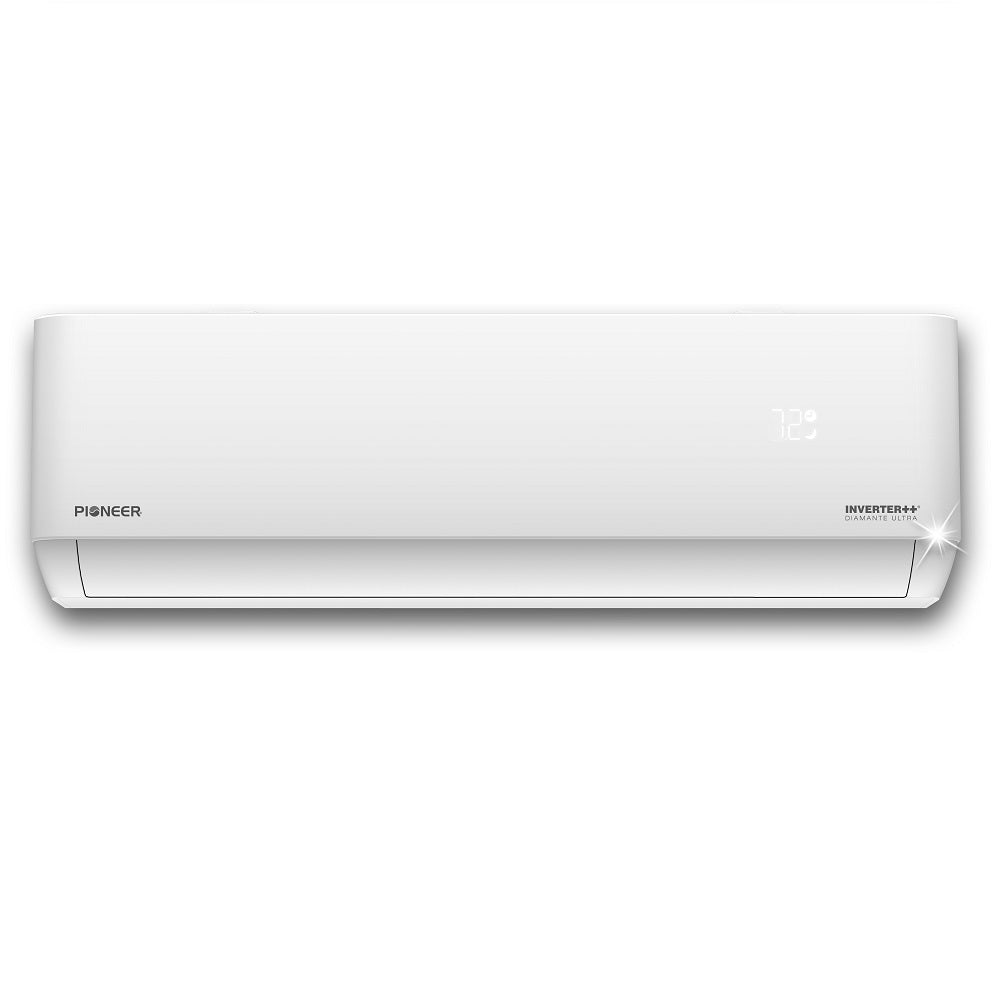

Indoor Unit Data
- Part Number: WT009ALFI22HLD
- Air Flow (Hi/Med/Lo): 382 / 324 / 265 CFM
- Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
- Net Dimensions (WDH): 32-1/4 x 7-5/8 x 12 Inches
- Carton Dimensions (WDH): 35 x 10-3/8 x 15 Inches
- Net / Gross Weight: 19.8 / 24.3 Lbs

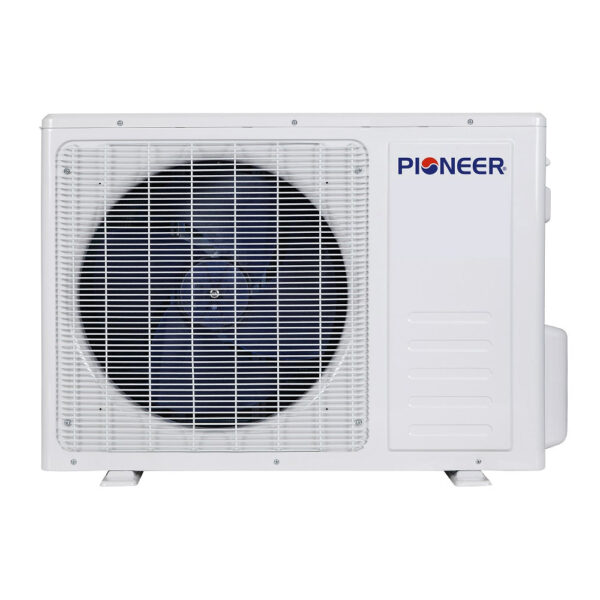

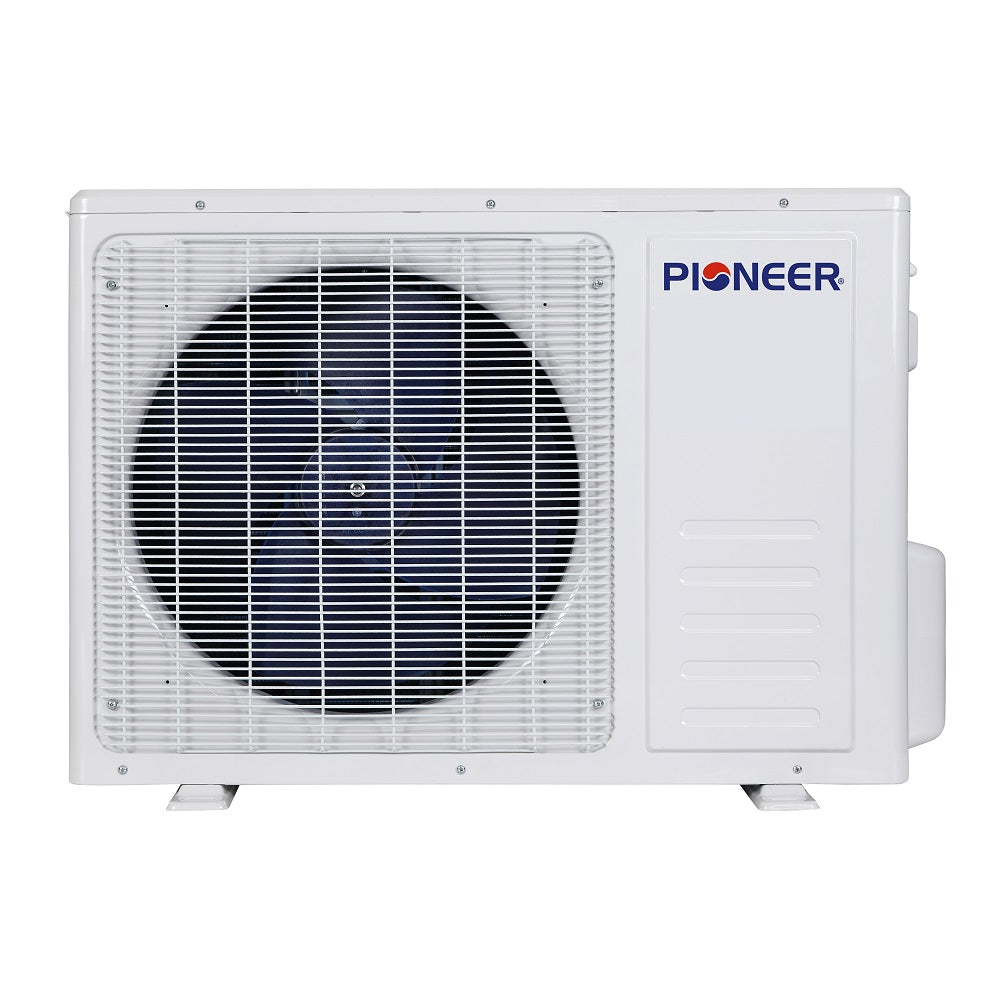

Outdoor Unit Data
- Part Number: YN009ALFI22RPD
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
- Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
- Net / Gross Weight: 51.8 / 56.2 lbs
- Electrical Circuit Size: 20A (single-pole)
