Overview
Summary
- Ultra High Efficiency Inverter++ ductless mini split heat pump system
- Cooling capacity: 18,000 BTU/H with 23.7 SEER2 / 13.5 EER2 efficiency
- Heating capacity: 18,000 BTU/H with 10.3 HSPF2 / 3.74 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $110.00
- Heating: $366.00
[[SERIES]]
What’s Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control

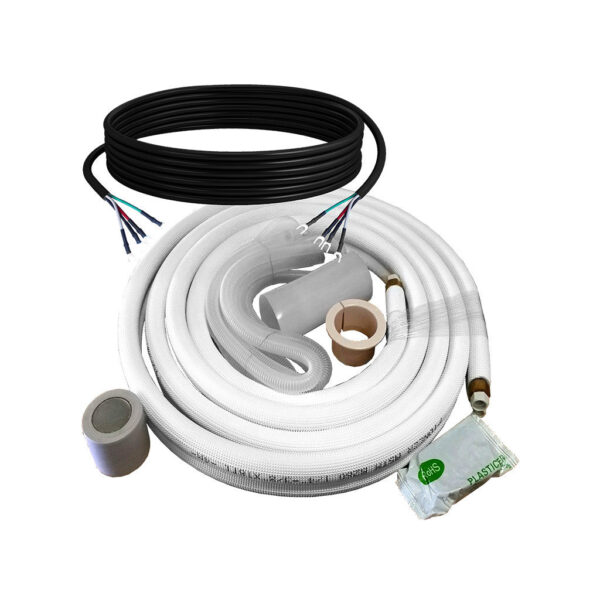

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
[[FEATURES]]
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 9,935~20,000 BTU/h
- Cooling SEER2: 23.7 BTU/W.h
- Cooling EER2: 13.5 BTU/W.h
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 6,615~21,000 BTU/h
- Heating HSPF2 (Region IV/V): 10.3 / 7.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.74 / 2.39 W/W
- Refrigerant Type: R410a/56.4 oz.
- Suitable Area: 400~650 Sq.F
Indoor Unit Data
- Model Number: WS018GMFI22HLE
- Air Flow (Turbo/Hi/Med/Lo): 706 / 470 / 353 / 294 CFM
- Sound Level (Hi/Med/Lo): 43 / 35 / 30 dB(A)
- Net Dimensions (WDH): 42.5 x 8.9 x 13.2 Inches
- Carton Dimensions (WDH): 45.5 x 12.6 x 16.3 Inches
- Net / Gross Weight: 29.5 / 37.5 Lbs
Outdoor Unit Data
- Model Number: YN018GMFI22RPE
- Sound Level: 59.0 dB(A)
- Electrical Circuit Size: 20A (double-pole)
- Net Dimensions (WDH): 35 x 13.5 x 26.5 Inches
- Carton Dimensions (WDH): 39.2 x 15.7 x 29.1 Inches
- Net / Gross Weight: 94.5 / 101 Lbs
