RENOGY 100A Solar Charge Controller with Core

The Renogy 100A Solar Charge Controller with Core is an advanced and efficient charge controller designed to optimize the power flow from your solar panels to your battery bank. It’s built to handle larger solar systems, ensuring safe and efficient charging for various battery types, including lithium, AGM, and lead-acid batteries. This controller also extends battery life and improves system performance by providing intelligent management of the charging process.

High 100A Capacity

Designed to handle up to 100 amps of current it is ideal for large solar arrays making it perfect for off-grid systems and larger setups.

Advanced MPPT Technology

Equipped with Maximum Power Point Tracking (MPPT) technology, the controller optimizes solar power generation by up to 30%, ensuring efficient energy conversion even in low-light conditions.

Multi-Stage Charging

It offers a four-stage charging process (Bulk, Boost, Float, and Equalization) to enhance battery life, performance, and health, preventing overcharging and discharging.

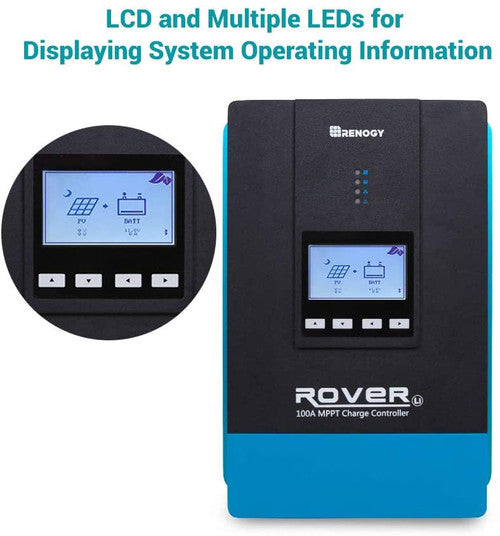

LCD Display and Monitoring

The integrated visual display provides real-time information about your solar input, battery charge levels, and system status, allowing easy monitoring of the entire system.

Safety Features

Built with multiple layers of protection, including overload, short-circuit, reverse polarity, and over-temperature safeguards to ensure the longevity of both the controller and your system components.

Specifications:

• Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)
• Rated Charge Current: 100A
• Max. PV Input Power: 1300W/12V; 2600W/24V; 3900W/36V; 5200W/48V
• Max. PV Input Voltage: 150VDC (25°C), 140VDC(-25°C)
• Self-Consumption: 2.7W – 2.9W
• Operating Temperature: -35°C to +45°C
• Temperature Compensation: -3mV/°C/2V (default)
• Dimensions: 12.00 x 17.44 x 4.35 in
• Weight: 22 lb.
• Enclosure: IP32

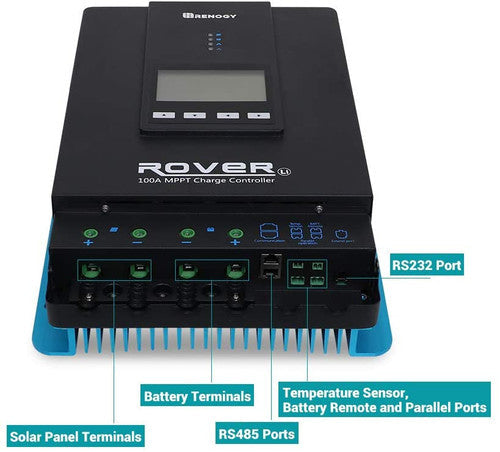

• Terminals: 25mm2, 4AWG
• Certification: CE

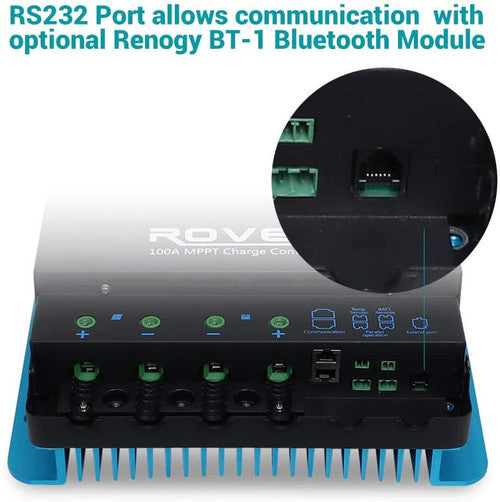

• Compatible Bluetooth: Renogy BT-1 & BT-2 Bluetooth module

What’s in the Box:

1 x Rover Amp MPPT Solar Charge Controller

1 x Remote Temperature Sensor

1 x Controller Paralleling Cable
