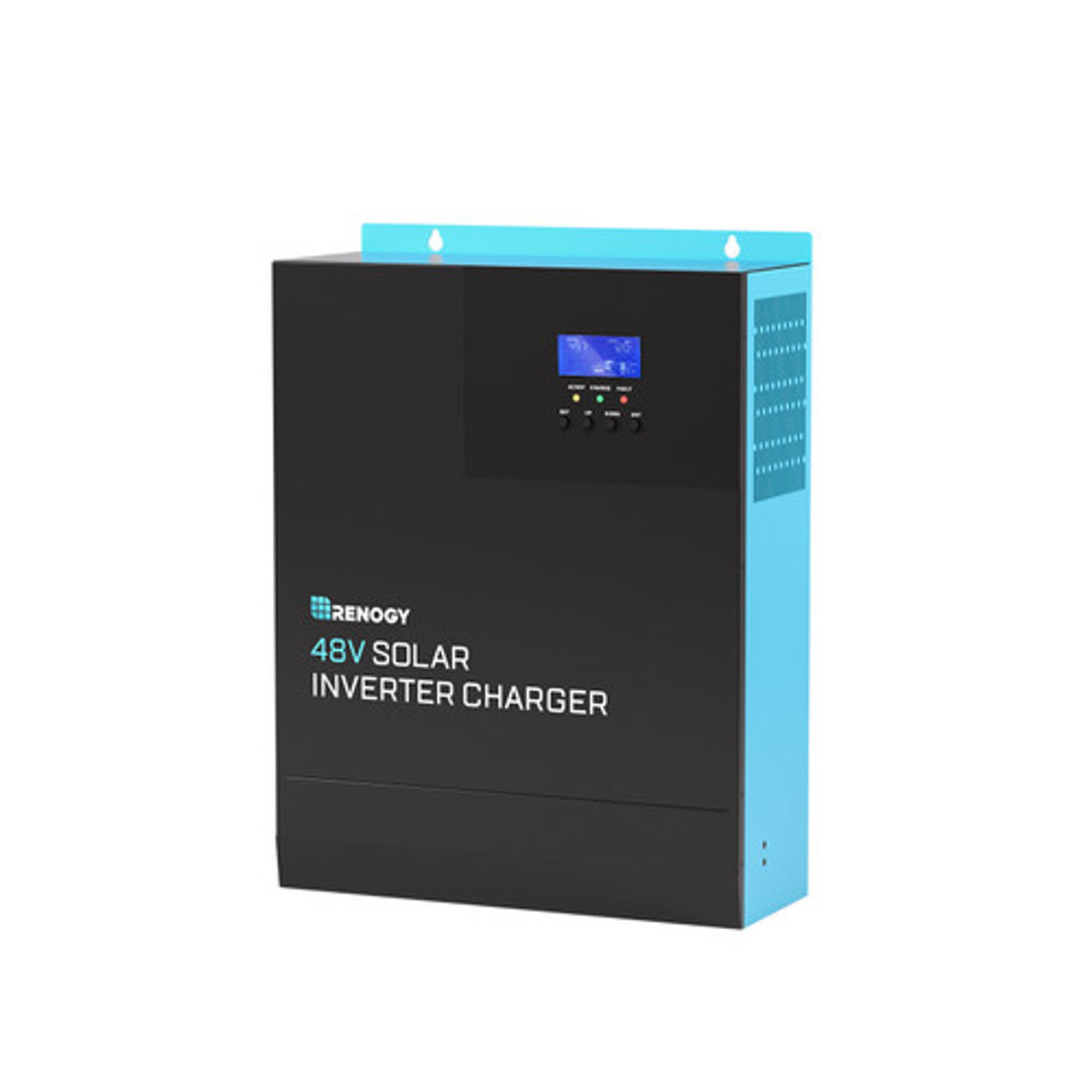

Renogy 48V 3500W reverse control all-in-one machine

Renogy 48V 3500W reverse control all-in-one machine

Renogy 48V 3500W reverse control all-in-one machine is the ultimate power guardian with -10ms switchover to uninterrupted sustainable power source. Enjoy 3500W of power with this pure sine wave inverter and compatible with AGM, SLD, GEL and FLD batteries.

Designed to power your entire household, Renogy reverse control machine brings down your energy cost drastically with multiple charging modes to match your needs. On low-light condition days the inverter goes for PV priority mode for optimal utilization of solar energy. On Utility Priority mode this inverter takes detected AC input as priority to charge battery accordingly.

A hybrid charging mode is best suited for those facing unstable grids and fluctuations. It will automatically switch to exclusive solar charging mode on a bright sunny day for optimal tapping of sustainable solar energy.

Highlights:

• Continuous output of 3500W with 7000W surge power
• Sustainable, reliable and uninterrupted power supply
• 48W low idle consumption
• 25W on power saving mode
• Compatible with all types of 48V batteries
• <55 dB low-noise solar inverter charger

Specifications:

Output Waveform: Pure Sine Wave

Continuous Output Power: 3500W

Peak Power Rating: 7000W

Output Voltage: 120VAC±5%

Output Frequency: 50 Hz ± 0.3% 60 Hz± 0.3%

Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)

Nominal Efficiency: > 90%

Bypass Breaker Current Load: 40A

Idle Consumption: 48W

Power Saver Mode Idle Consumption: ＜25W

Charge Controller Type: MPPT

Maximum Input Power: 4400W

Maximum Input Current: 50A

PV Charging Current Range: 0-80A

Recommended Max. PV Open Circuit Voltage: 145VDC

PV Operating Voltage: 60-145VDC

MPPT Voltage Range: 60-115VDC

Short-circuit Protection: Internal Fuse

Wiring Protection: Reverse Polarity

Recommended Wiring: 8 AWG

Rated Input Voltage/Input Voltage Range: 120Vac/90 ~ 140VAC ± 2% Adjustable

Frequency: 50 Hz / 60 Hz (auto detect)

Efficiency: ＞95%

Conversion Time: 10ms

Battery Type: Lead Acid and Lithium Battery

Maximum Charging Current: 40A

Charging Voltage Range: 40-60VDC

Short-circuit Protection: Breakers and fuses

Overcharge Protection: Yes. Automatically alerts and turns off charging after 1 min)

Reverse Flow Protection: Yes

Dimensions: 16.8 x 12.7 x 4.9 in

Weight: 23.8 lbs

Communication Port: RS485/CAN Communication Port (BT-2 Bluetooth Module)

Cooling Fan: Yes

Operating Temperature Range: 5°F ~ 131°F/ -15°C ~ 55°C

Storage Temperature: -13°F ~ 140°F / -25°C ~ 60°C

Humidity: 5% to 95% (three-layer paint protection)

Noise: ≤60dB

IP Grade: IP 20

Safety Class: I

Warranty: 1 Year

What’s in the Box:

1 x 48V 3500W Solar Inverter Charger

1 x 16.4FT Inverter Remote Control

1 x User Manual
