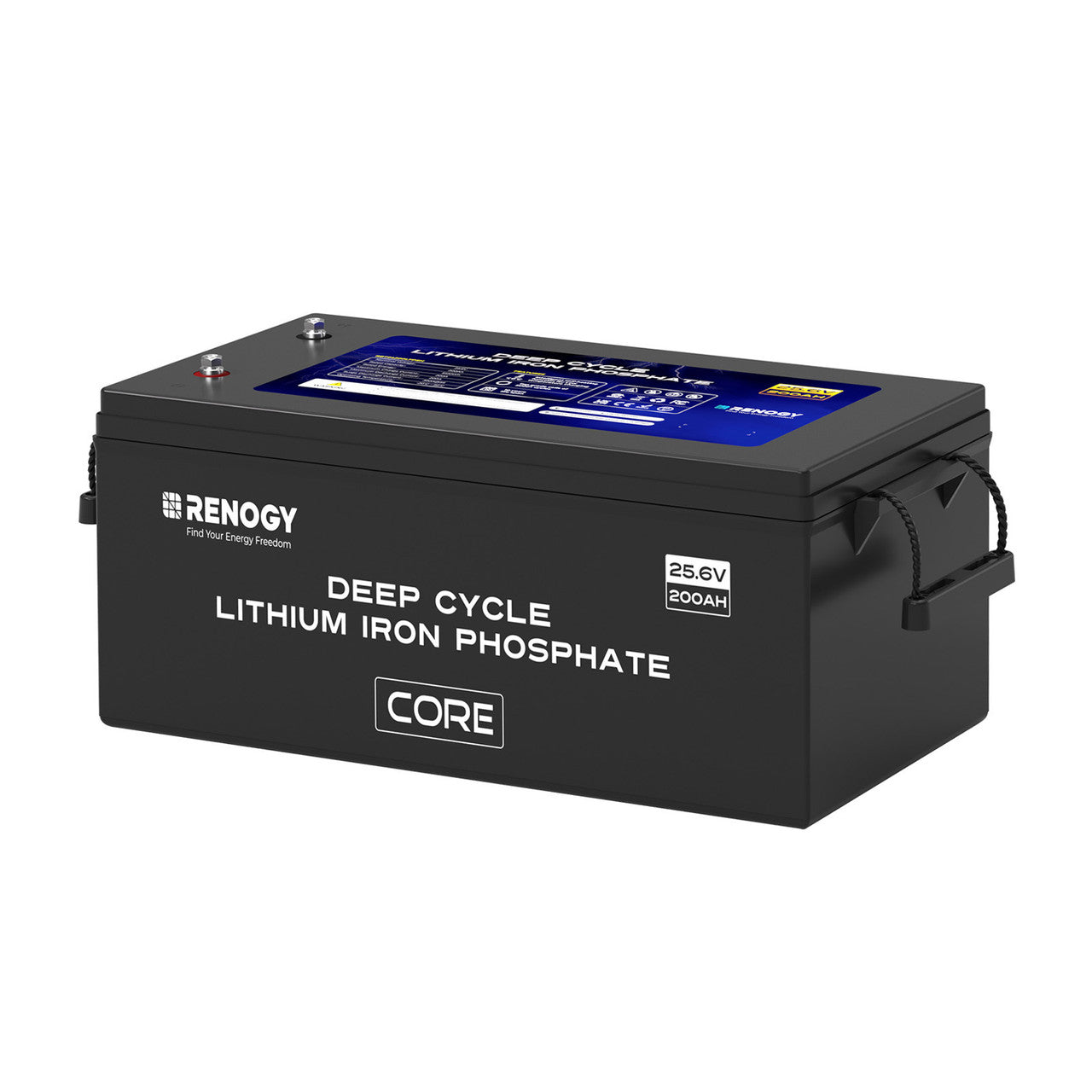

Renogy Deep Cycle 24V 200Ah Core lithium battery with self-heating function

Renogy Deep Cycle 24V 200Ah Core lithium battery with self-heating function

Renogy brings your way a smart battery with smarter features, the deep cycle 24V 200Ah Core Lithium Battery with Self-Heating function, the one-shop energy upgrade with 2 x faster heating, light EV-class Grade A cells with 15+ years of lifespan, built-in BMS and low temperature cut off for extended battery life.

EXCEPTIONAL PERFORMANCE

Renogy has designed this 200Ah 24V core lithium battery keeping in mind your outdoor adventure fantasies. So our battery now weighs 65% lighter, offers more power and charges quicker which means it adds no extra load on your cruise boat, perfect to venture out on the much awaited fishing adventure and stay put all day.

SMART SELF HEATING

Batteries do conk out on extreme cold, so Renogy has reinvented a game-changing self-heating function, an intelligent self-heating feature that is 2X faster to protect your battery from freezing temperatures.

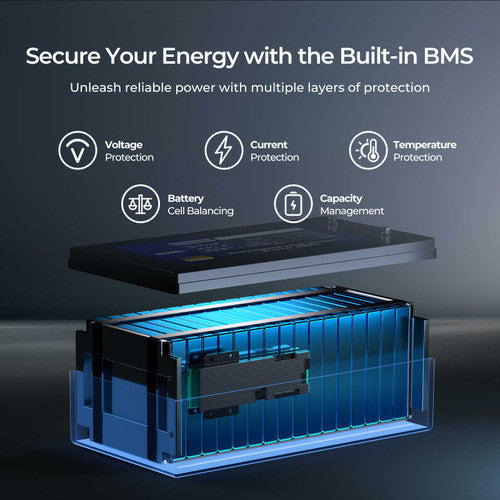

BMS

A smart battery management system is built-in to manage battery charge and discharge in low temperatures with an auto cut-off, thus lengthening battery life.

AUTOMATIC BATTERY CELL BALANCING

Capacity and voltage of every individual cell is automatically balanced to maintain the overall capacity, longevity and charging efficiency that keeps the battery health in optimal state.

AMPLE RUNTIME

Built to supply you with pure energy from hours to days, from LED lights to fridge to running your washing machine, Renogy 24V 200Ah core battery with its expandable capacity of up to 40.96Wh has your workshop and home covered, up and running at all times.

Specifications:

Battery Type: Lithium Iron Phosphate

Voltage: 24V

Energy: 5120Wh

Rated Capacity: 200Ah (0.5C)

Charge Voltage: 29.0V

Maximum Charge Current: 200A

Maximum Discharge Current: 200A

Peak Discharge Current: 390A@5s

Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD)

Automatically Self-heating: Yes

Charge Temperature Range: ‘-4°F to 131°F (-20°C to 55°C)

Discharge Temperature Range: ‘-4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: ‘-13°F to 149°F (-25°C to 65°C)

Operation Relative Humidity: 10% to 95%

Connection Method: Series & Parallel (2S4P)

Terminal Bolt Size: M8 x 1.25 x 15 mm

Recommended Terminal Torque: 88.5 inch·lbs to 106.2 inch·lbs / 10 N·m to 12 N·m

Housing Material: ABS

Protection Rating: IP65

Dimensions: 20.55 x 10.55 x 8.62 in / 522 x 268 x 219 mm

Weight: 88.6 lbs. / 40.2 kg

Long Terminal Bolts x 2: M8*1.25*20 mm

Insulating Sleeve × 2: Yes

Material and Workmanship Warranty: 5 Years

What’s in the Box:

1 x 24V 200Ah Deep Cycle Lithium Iron Phosphate Battery

2 x Long Terminal Bolts

2 x Insulating Sleeve

1 x User Manual
