Name: Pioneer® 12,000 BTU 22 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
SKU: 7566990344234
Availability: InStock

Overview

Summary

Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
Cooling capacity: 12,000 BTU/H with 22 SEER2 / 12.6 EER2 efficiency
Heating capacity: 12,500 BTU/H with 9.8 HSPF2 / 3.20 COP2 efficiency
Voltage: 208~230 V, 60 Hertz, 1 Ph
One-Way Ceiling Cassette Air Conditioning & Heating System
Variable Speed DC Inverter Operation Mode
Customizable length copper line set with flare connections
Energy-Star Certified

[[SERIES]]

What’s Included

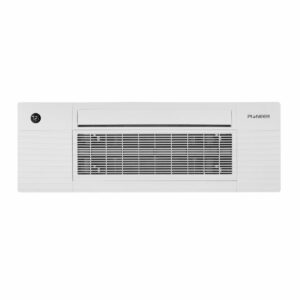

Indoor Unit
Outdoor Unit
Decorative Panel

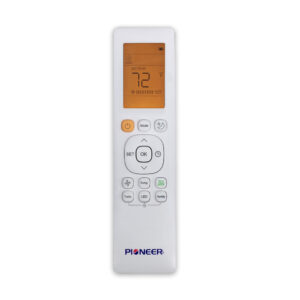

Wireless Remote Control
Various Installation Kit Options Available
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
Manufacturer Warranty

Our Guarantee

5 year parts limited warranty
5 year compressor limited warranty

Technical Information

Certifications

Performance Data

Power Supply: 208~230V, 60Hz, 1Ph
Cooling Rated Capacity: 12,000 BTU/h
Cooling Capacity Range: 4,000~13,200 BTU/h
Cooling SEER2: 22.0 BTU/W.h
Cooling EER2: 12.6 BTU/W.h
Heating Rated Capacity: 12,500 BTU/h
Heating Capacity Range: 3,700~12,800 BTU/h
Heating HSPF2: 9.8 BTU/W.h
Heating C.O.P.2: 3.20 W/W
Refrigerant Type: R410a
Suitable Area: 200~450 Sq.F

Indoor Unit Data

Model: CK012GMFILCFHD
Air Flow (Turbo/Hi/Med/Lo): 600 / 530 / 480 / 420 CFM
Sound Level (Hi/Med/Lo): 40.5 / 38.5 / 34.5 dB(A)
Net Dimensions (WDH): 13-1/4 x 50-1/4 x 9 Inches
Carton Dimensions (WDH): 22-1/2 x 57-5/8 x 22-5/8 Inches
Net / Carton Weight: 45.2 / 82.9 Lbs

Panel Data

Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
Panel Net / Gross Weight: 24 / 29 Lbs

Outdoor Unit Data

Model: YN012GMFI22RPE
Sound Level: 54.5 dB(A)
Net Dimensions (WDH): 30.3 x 11.8 x 21.8 Inches
Carton Dimensions (WDH): 35.3 x 13.6 x 14.6 Inches
Net / Gross Weight: 64 / 69 Lbs
Breaker Needed: 15A (double-pole)
